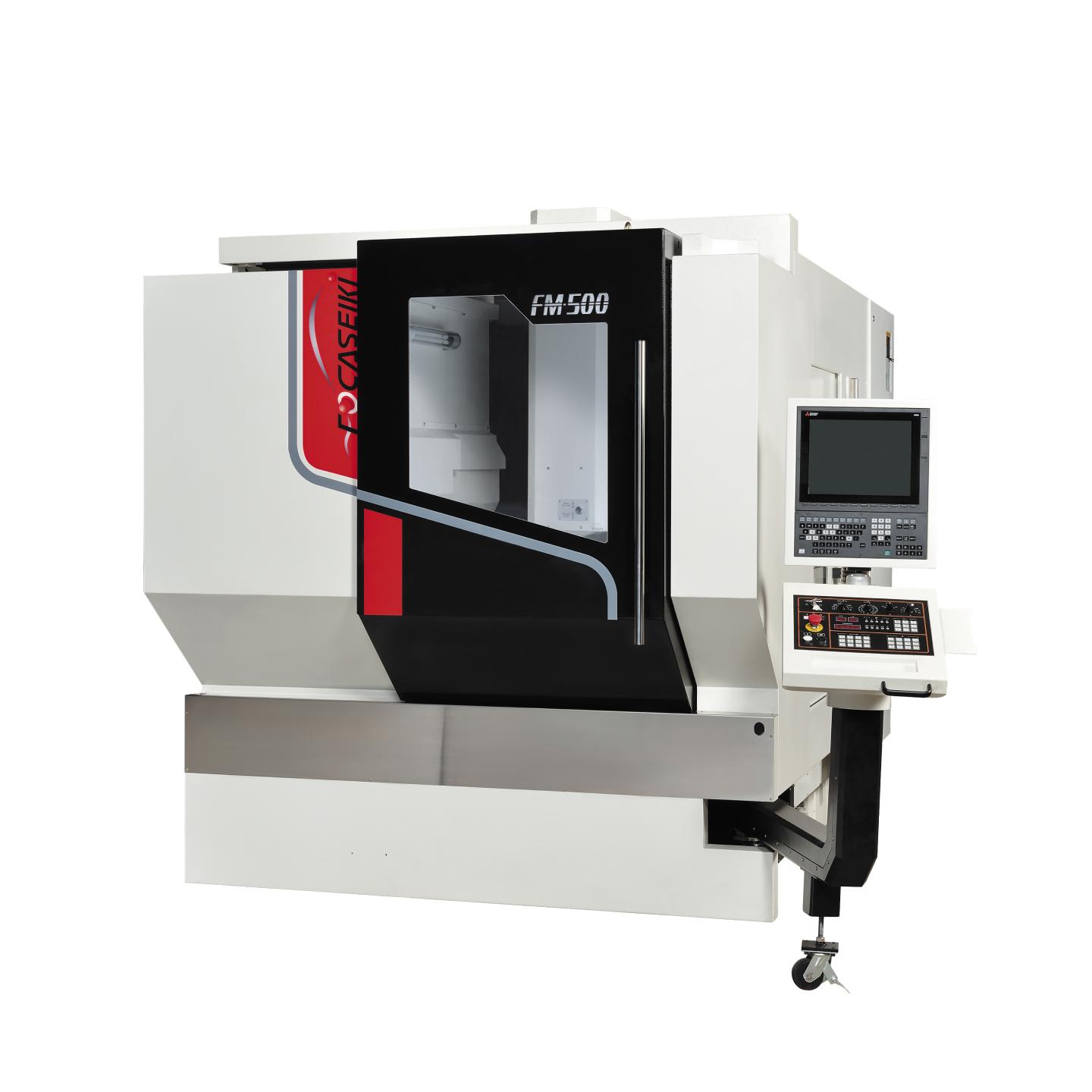

CNC 5 Axes Machining Center
FM 410/500
FM 410/500
◉ Optimum Design On X/Y/Z Axes, Best Rigidity
Performance Stabilizes Axes Moving and Processing.

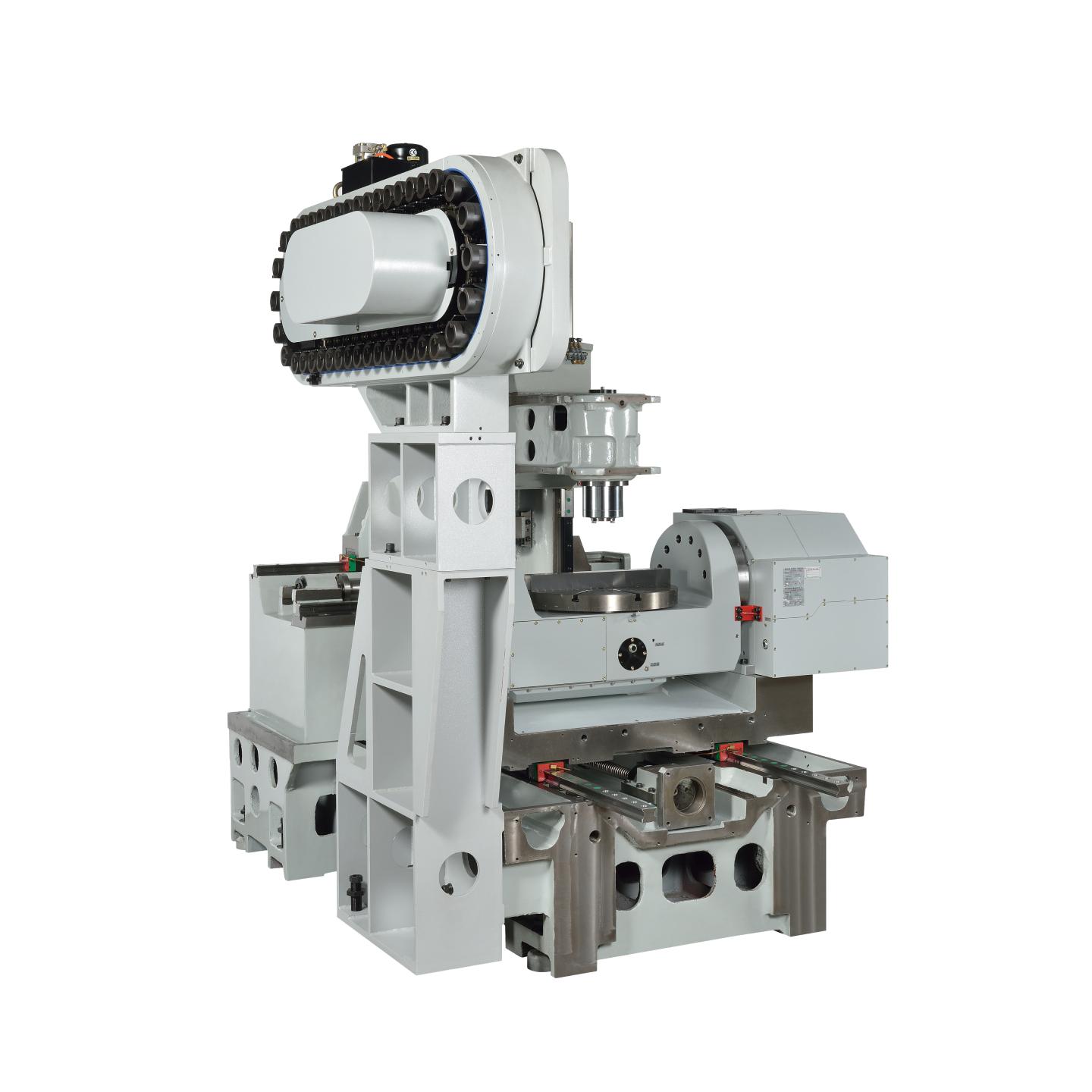

◉ Grounded Tool Magazine Connected with Base MAchine Base, Reduce the Instability From Moving Column, as Well as Axial Load.
MODEL | UNT | 410 | 500 |
Table | |||
Table Size | mm | Ø410 | Ø500 |
T-Slot | mm | 14H7 | 14H7 |
Max. Table Loading Capacity | kgs | H: 200 / T: 150 | H: 300 / T: 250 |
Travel | |||
X Axis Travel | mm | 560 | 560 |
Y Axis Travel | mm | 500 | 480 |
Z Axis Travel | mm | 450 | 450 |
A Axis Tilting Angle Range | mm | +30°~-120° | +30°~-120° |
C Axis Rotary Angle | mm | 360° | 360° |
Spindle Nose To Table Surface | mm | 150~600 | 150~600 |
Spindle | |||
Spindle Taper | ISO-40 (CAT, DIN, HSK-63A) | ||
Spindle Speed | rpm | 8000 (10000, 12000, 15000) | |
Transmission Method | Belt (Direct) | Belt (Direct) | |
Spindle Motor | kW | 7.5/11 | 7.5/11 |
ATC | |||
Magazine Capacity | tools | 30 (40) | 30 (40) |
Tool Selection Method | Random | Random | |
Max. Diameter / W / O Adjacent | mm | Ø71/Ø150 | Ø71/Ø150 |
Max. Tool Length | mm | 280 | 280 |
Max. Tool Weight | kgs | 7 | 7 |
Tool Change Time | sec | T-T: 1.55; C-C: 5 | T-T: 1.55; C-C: 5 |
3 Axis Traverse | |||
3 Axis Cutting Feedrate | m/min | 12 | 12 |
3 Axis Rapid Traverse | m/min | 36/36/36/ (48/48/48) | 36/36/36/ (48/48/48) |
A / C Axis Speed | min-1 | 11.1/16.6 | 11.1/16.6 |
Accuracy | |||
Positioning | min | 0.008 | 0.008 |
Repeatability | min | ± 0.005 | ± 0.005 |
Coolant | |||
Coolant tank Capacity | l/min | 240 | 240 |
Coolant Flow | l/min | 100 | 100 |
General | |||
Air Pressure Requirement | Kg/cm2 | 5~7 | 5~7 |
Power Requirement | KVA | 25 | 25 |
Machine Size | mm | 4330 x 2165 x 2840 | 4330 x 2165 x 2840 |
Machine Weight | kgs | 7400 | 7700 |
- We reserve the right to modify the design and specification without notice in advance.
Above specifications are for reference only. Correct specifications are based on actual machine. - Description in ( ) are optional accessories.
