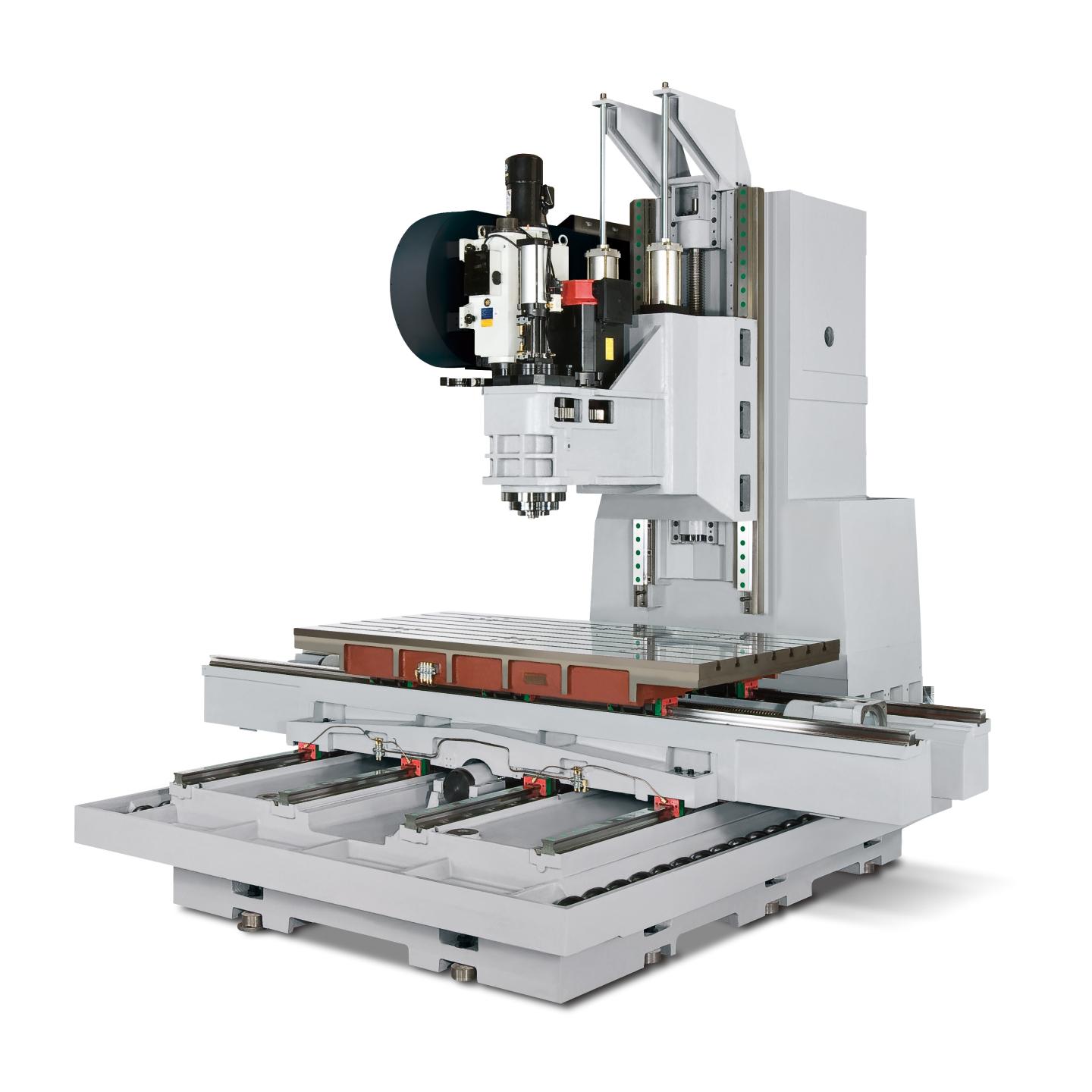

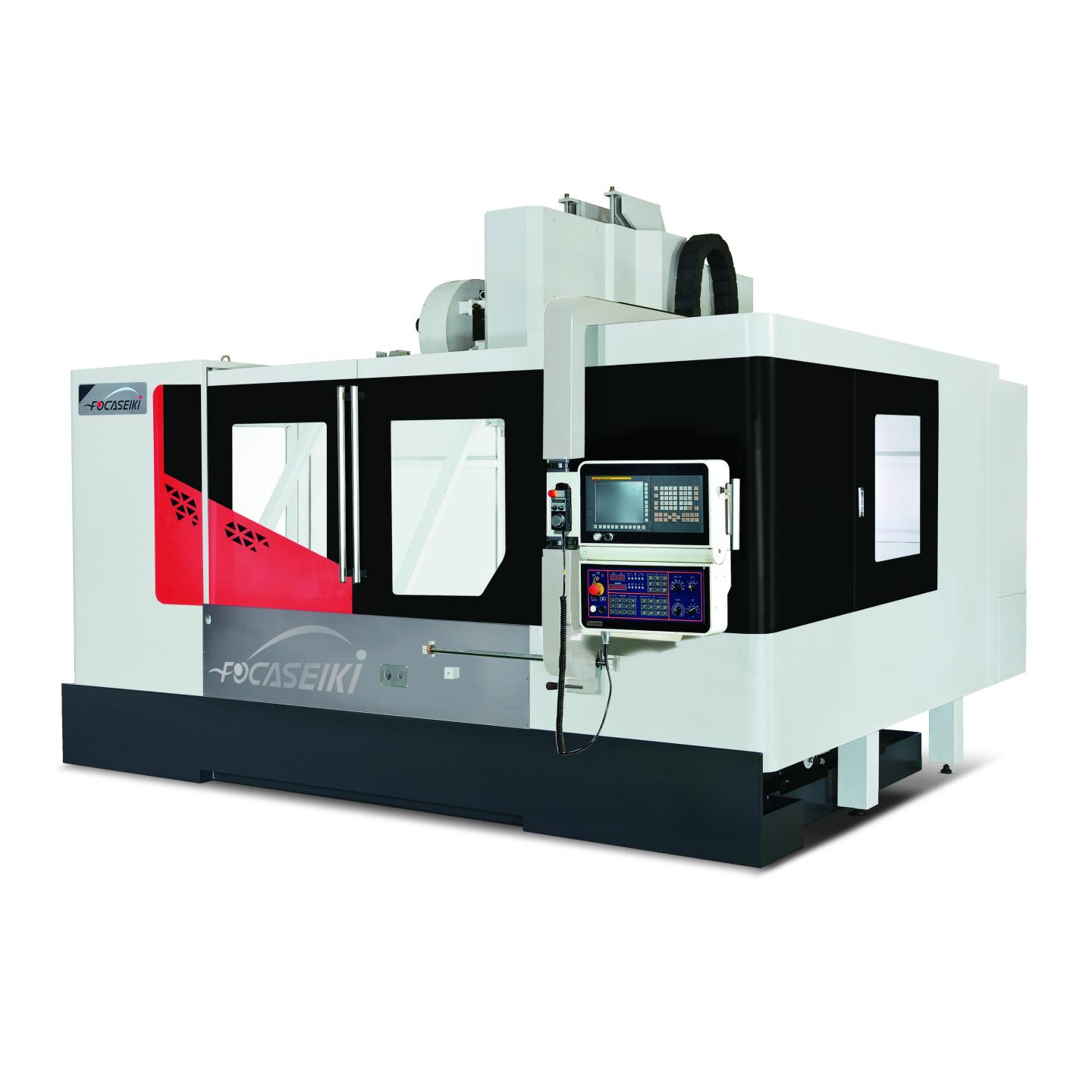

VMC 1600/1800/2000

Faster Cycle Times

X/Y/Z Axes Rapid Traverse 24/24/20 m/min

◉ Low Speed High Torque Wide Range Spindle Motor

◉ Z Axis Used Servo Motor Brake System & Two Cylinders. For Counter Balance For High Performance

◉ 2000 Models Use NSK Roller Type Slide Blocks On Y Axis. For Increased Machine Stability & Precision

◉ Movable Control Panel For Easy Operation, Workpiece / Tool Adjustment

MODEL	UNT	1600	1800	2000
Table
Table size	mm	1700 x 1000	1900 x 1000	2100 x 1000
Working area	mm	1600 x 1000	1800 x 1000	2000 x 1000
T - slot	mm	18 x 7 x 125	18 x 7 x 125	18 x 7 x 125
Max. table loading capacity kgs	kgs	2200	2500	3000
Travel
X/Y/Z - axis travel	mm	1600 / 1000 / 800	1800 / 1000 / 800	2000 / 1000 / 800
Spindle nose to table surface	mm	200 ~ 1000
Spindle
Spindle taper		ISO 50 (ISO 40)
Spindle R.P.M.	rpm	6000 (8000,10000 ) (ISO40:8000,10000,12000,15000)
Transmission method		Belt (Gear, direct, Gearbox)
Spindle motor	kw	15 / 18.5 (18.5 / 22)
Automatic Tool Changer
Magazine capacity	tools	20 (24)
Tool selection method		Random
Max. tool diameter (w/o adjacent)	mm	Ø105 / 210 (ISO40: Ø75 / 150)
Max. tool weight/ length	Kgs/mm	15/350 (ISO40:7/300)
Tool shank specif.		ISO50 (ISO40)
Tool Change time	sec	T-T:3.5;C-C:7 (ISO40 :T-T2.5; C-C4.8)
3 Axis traverse
3-axis cutting feed rate	mm/min	10000
3-axis rapid traverse	M/min	20 / 20 / 15 (24 / 24 / 20)
Dive Motor
Chip auger motor	HP	1/2
Chip conveyor motor	HP	1/4
Coolant pump motor	HP	3/4
Chip flushing pump motor	HP	1/2 (3/4)
Coolant Tank
Coolant tank capacity	L	600	700	750
Coolant flow	L/min	200	200	200
Others
Machine dimensions (LxWxH)	mm	4610 x 4750 x 3470	4970 x 4750 x 3470	5440 x 4750 x 3470
Net weight / Gross weight	kgs	17000 / 20000	18000 / 21000	20000 / 23000

We reserve the right to modify the design and specification without notice in advance.
Above specifications are for reference only. Correct specifications are based on actual machine.
Description in ( ) are optional accessories.
