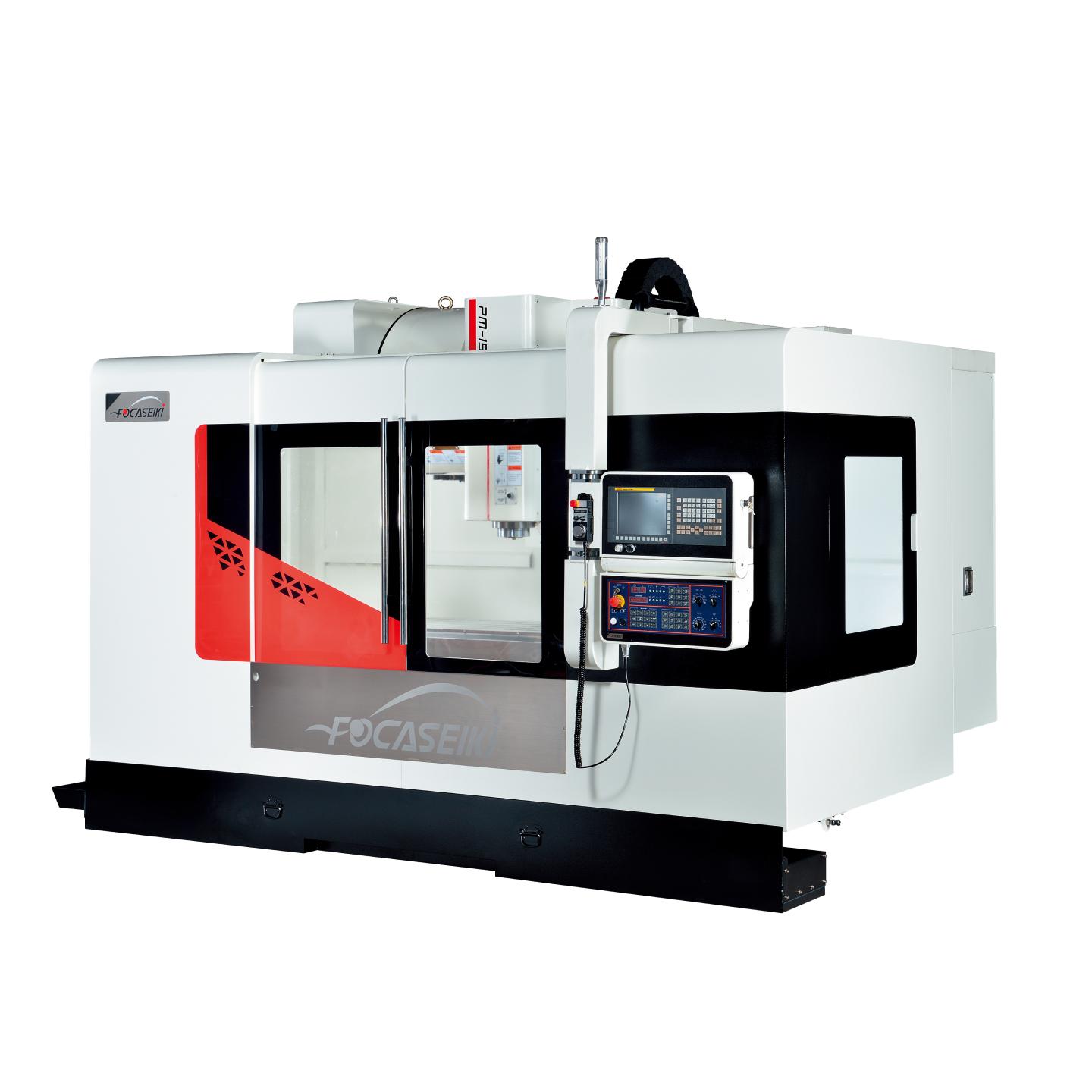

CNC Vertical Machining Center
VMC 1250/1350
VMC 1250/1350

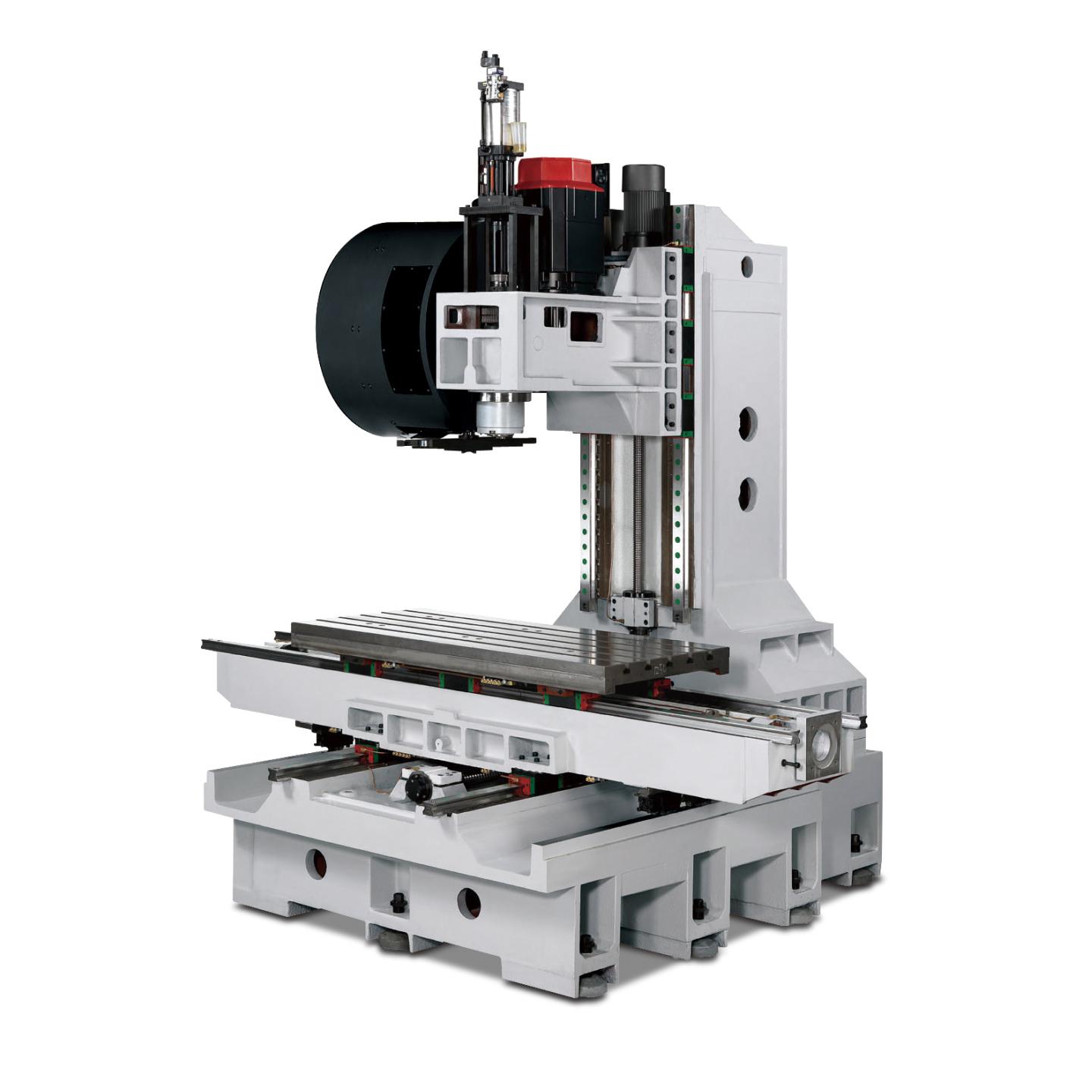

Increased Precision & Stability
4 Roller Linear Guideways on Y Axis
◉ 3 Axis Rapid Traverse 24 m/min, Option 30/30/24 m/min
◉ HQ-Container Packing (Lower Shipping Cost)
◉ Reservoir-Type Lubricator Bronze Tube Oil Circuit
◉ Direct Type Spindle Motor Cooling Device
MODEL | UNT | 1250 (1350) |
Table | ||
Table size | mm | 1350 x 600 |
Working area | mm | 1250 (1350) x 700 |
T - slot | mm | 18 x 5 x 100 |
Max. table loading capacity kgs | kgs | 1200 |
Travel | ||
X/Y/Z - axis travel | mm | 1250 (1350) / 700 / 600 (640) |
Spindle nose to table surface | mm | 120 ~ 720 (760) |
Spindle | ||
Spindle taper | ISO 40 (ISO 50) | |
Spindle R.P.M. | rpm | 8000 (10000,12000,15000 )(ISO50: 6000,8000,10000) |
Transmission method | Belt (Direct, Gearbox) | |
Spindle motor | kw | 7.5/11 (11/15,15/18.5) |
Automatic Tool Changer | ||
Magazine capacity | tools | 24 (30, 36, 40) (ISO50:20, 24) |
Tool selection method | Random | |
Max. tool diameter/ W/O adjacent | mm | Ø75 / Ø150 |
Max. tool weight / length | kgs/mm | 7/ 300 (ISO50:15/350) |
Tool shank | ISO-40 (ISO-50) | |
Tool Change time | sec | T-T:2.5 ; C-C:4.8 |
3 Axis Traverse | ||
3-axis cutting feed rate | mm/min | 12000 |
3-axis rapid traverse | M/min | 24 (30/30/24) |
Dive Motor | ||
Chip auger motor | HP | 1/4 |
Chip conveyor motor | HP | 1/4 |
Coolant pump motor | HP | 3/4 |
Chip flushing pump motor | HP | 1/2 (3/4) |
Coolant Tank | ||
Coolant tank capacity | L | 400 |
Coolant flow | L/min | 200 |
Others | ||
Machine dimensions (LxWxH) | mm | 3960 x 3400 x 3080 |
Net weight / Gross weight | kgs | 7400 / 7900 |
- We reserve the right to modify the design and specification without notice in advance.
Above specifications are for reference only. Correct specifications are based on actual machine. - Description in ( ) are optional accessories.
