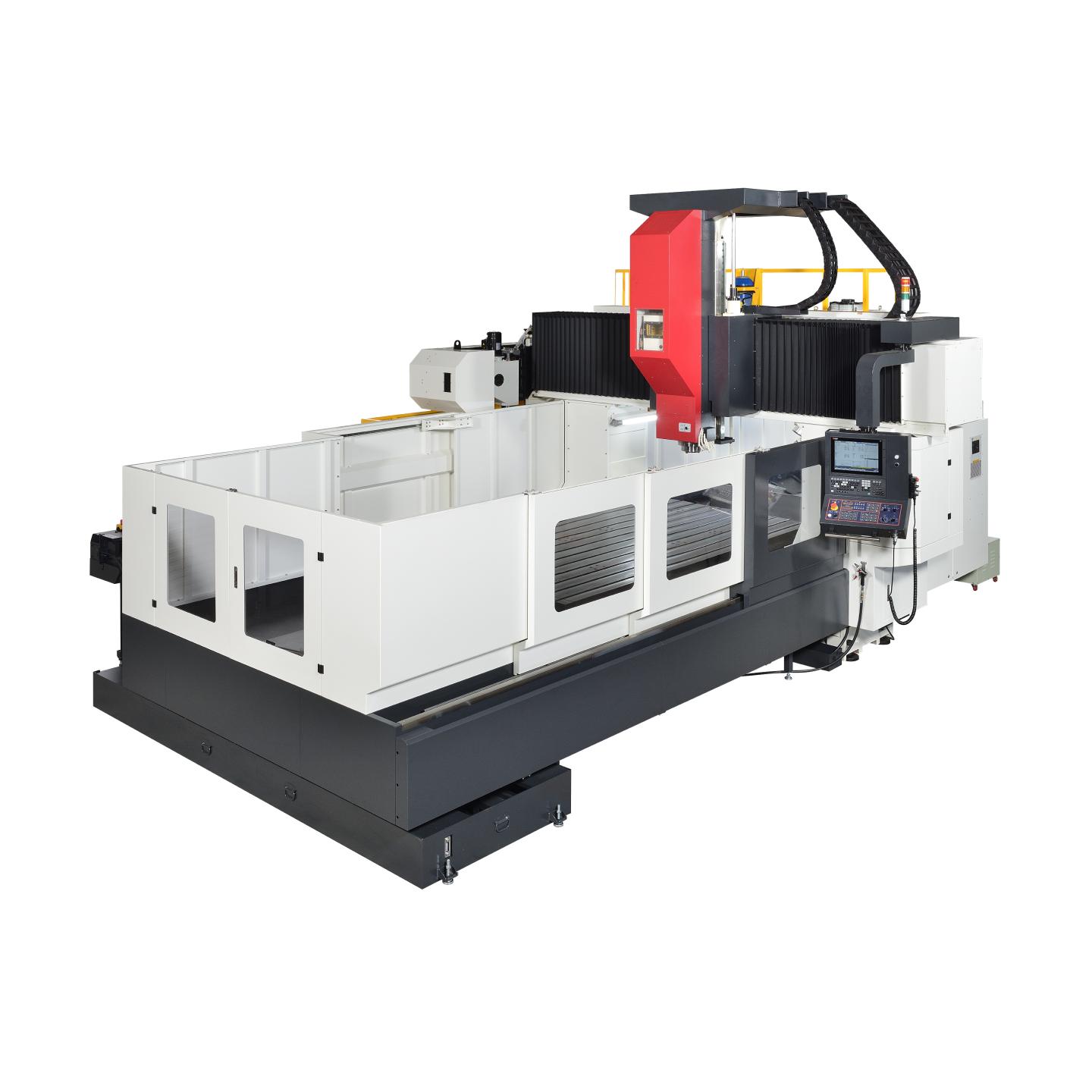

Double Column Machining Center
FDC 2122/2132/2142
FDC 2122/2132/2142
◉ Rugged construction throughout guarantees superior rigidity and stability.
◉ BT-50, 8000RPM direct drive spindle combined with high/low speed gearbox meets the requirements of high speed, high precision and high torque output at low speed. Also, available to equip with coolant through spindle for efficient cooling on work piece and tool in heavy cutting. This also results in longer tool life and higher parts accuracy.
◉ The base and the column are box type, one-piece construction combined with solid support for maximum stability when loading extra large work piece.
◉ Wide range application for BT50 8000RPM spindle, can machining with 1700mm, max length 4000mm, height 900mm work piece.
◉ The spindle head is a symmetrical layout with box type construction. Shortened distance between spindle center and Z-axis slideway faces. The spindle head operates together with a gearbox to fully exhibit extra heavy cutting xapacity.
| 21 Series | ||
Model | 2122 | 2132 | 2142 |
Travel | |||
Travel ranges(X*Y*Z mm) | 2200x2100x900 | 3200x2100x900 | 4200x2100x900 |
Spindle nose to table surface (mm) | 200~1100 (optional 300~1400 with Z stroke 1100) | ||
Spindle center to column (mm) | 404 | 404 | 404 |
Distance between column (mm) | 2100 | 2100 | 2100 |
Table | |||
Table size (mm) | 2200x1700 | 3200x1700 | 3200x1700 |
T-slot (width*distance*number mm) | 22x150x11 | 22x150x11 | 22x150x11 |
Max. table load (kgs) | 8000 | 10000 | 12000 |
Spindle | |||
Tllo shank & pull stud | ISO50 | ISO50 | ISO50 |
Spindle inner diameter (mm) | Ø100 | Ø100 | Ø100 |
Spindle speed (rpm) Gear | 8000 | 8000 | 8000 |
Draw bar force (kgf) | 1800 | 1800 | 1800 |
Main motor (con/30min kW) | 15/18.5 | 15/18.5 | 15/18.5 |
Axis servo motor | |||
Rapid feed rate (X/Y/Z m/min) | 12/16/20 | 12/16/20 | 10/16/20 |
Feed rate (X/Y/Z mm/min) | 10000 | 10000 | 10000 |
Mitsubishi kW | HF703 7.0 | HF703 7.0 | HF703 7.0 |
Fanuc kW | a30/3000i 7.0 | a30/3000i 7.0 | a30/3000i 7.0 |
Siemens kW | 1FK7105 8.2 | 1FK7105 8.2 | 1FK7105 8.2 |
Fagor kW | FXM75.20 7.0 | FXM75.20 7.0 | FXM75.20 7.0 |
Heidenhain kW | QSY190D 9.6 | QSY190D 9.6 | QSY190D 9.6 |
Auto tool changer | |||
ATC type | Disk/Chain | Disk/Chain | Disk/Chain |
Cam type | Arm | Arm | Arm |
Tool selection (Bi-direction) | Random | Random | Random |
Tool storage capacity (pcs) | 24/32 | 24/32 | 24/32 |
Max. tool diameter (mm) | Ø115/Ø127 (Ø160/Ø250) | Ø115/Ø127 (Ø160/Ø250) | Ø115/Ø127 (Ø160/Ø250) |
Max. tool length (mm) | 350 | 350 | 350 |
Max. tool weight (kg) | 20 | 20 | 20 |
Miscellaneous | |||
Air requirement (kg/cm2) | 6 | 6 | 6 |
Voltage | 220 | 220 | 220 |
Power requirement (kVA) | 50 | 50 | 50 |
Coolant tank capacity (L) | 900 | 900 | 900 |
Machine weight (kgs) | 23500 | 24000 | 25500 |
Machine height (mm) | 4440 (optional 5100 with Z stroke 1100) | ||
Floor space (L*W mm) | 6490x5320 | 8440x5320 | 10480x5320 |
- We reserve the right to modify the design and specification without notice in advance.
Above specifications are for reference only. Correct specifications are based on actual machine.
