FDC 1417/1422/1432/1442Product

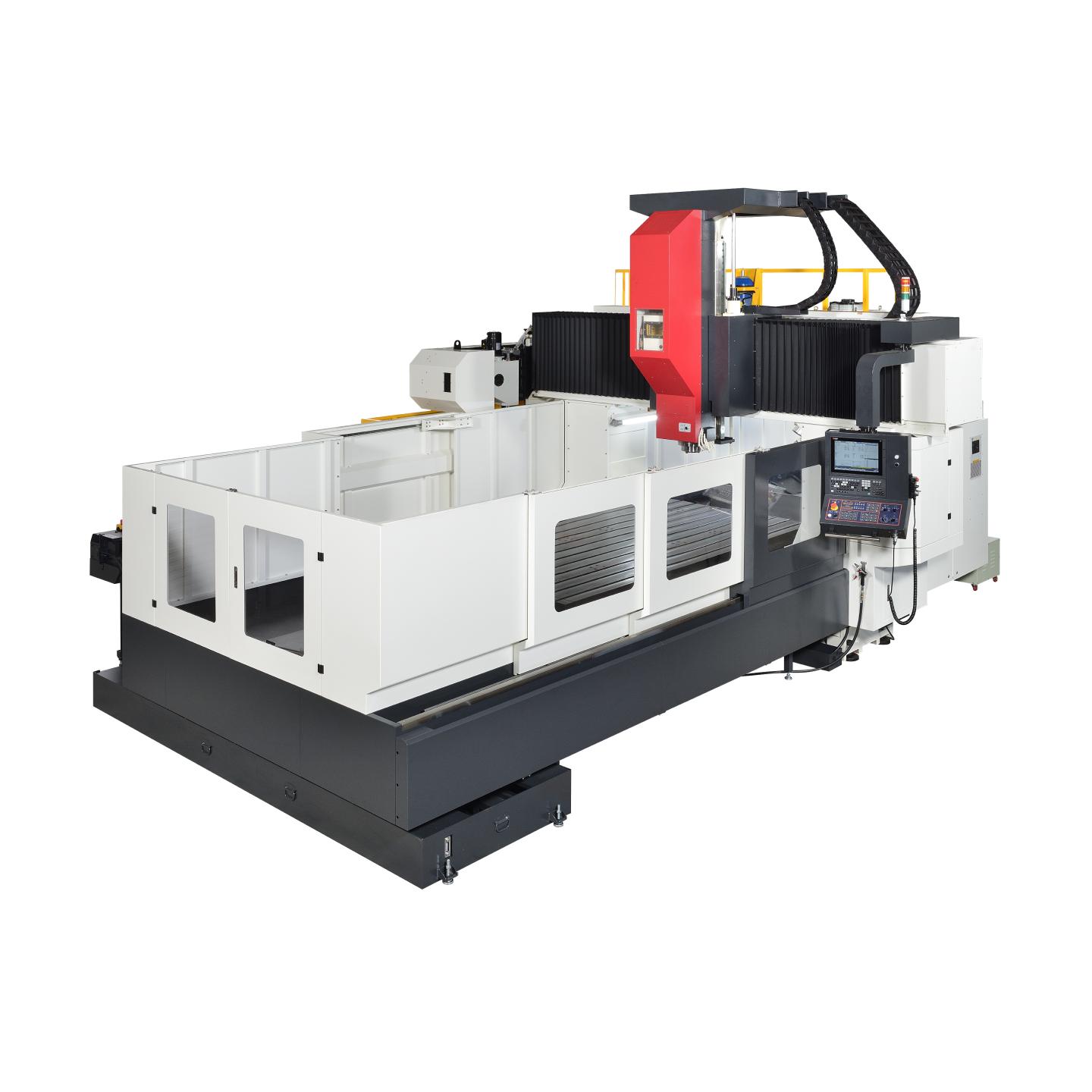

Double Column Machining Center

FDC 1417/1422/1432/1442

FDC 1417/1422/1432/1442

 ◉ Rugged construction throughout guarantees superior rigidity and stability.

 ◉ BT-50, 8000RPM direct drive spindle combined with high/low speed gearbox meets the requirements of high speed, high precision and high torque output at low speed. Also, available to equip with coolant through spindle for efficient cooling on work piece and tool in heavy cutting. This also results in longer tool life and higher parts accuracy.

 ◉ The base and the column are box type, one-piece construction combined with solid support for maximum stability when loading extra large work piece.

 ◉ Wide range application for BT50 8000RPM spindle, can machining with 1700mm, max length 4000mm, height 900mm work piece.

 ◉ The spindle head is a symmetrical layout with box type construction. Shortened distance between spindle center and Z-axis slideway faces. The spindle head operates together with a gearbox to fully exhibit extra heavy cutting xapacity.



14 Series

Model

1417

1422

1432

1442

Travel

Travel ranges(X*Y*Z mm)

1700x1400x900

2200x1400x900

3200x1400x900

4200x1400x900

Spindle nose to table surface (mm)

200~1100(optional 300~1400 with Z stroke 1100)

Spindle center to column (mm)

404

404

404

404

Distance between column (mm)

1400

1400

1400

1400

Table

Table size (mm)

1700x1200

2200x1200

3200x1200

4200x1200

T-slot (width*distance*number mm)

22x150x7

22x150x7

22x150x7

22x150x7

Max. table load (kgs)

5000

5000

8000

8000

Spindle

Tool shank & pull stud

ISO50

ISO50

ISO50

ISO50

Spindle inner diameter (mm)

Ø100

Ø100

Ø100

Ø100

Spindle speed (rpm) Gear

8000

8000

8000

8000

Draw bar force (kgf)

1800

1800

1800

1800

Main motor (con/30min kW)

15/18.5

15/18.5

15/18.5

15/18.5

Axis servo motor

Rapid feed rate (X/Y/Z m/min)

20/20/20

16/20/20

16/20/20

12/20/20

Feed rate (X/Y/Z mm/min)

10000

10000

10000

10000

Mitsubishi kW

HF703 7.0

HF703 7.0

HF703 7.0

HF703 7.0

Fanuc kW

a30/3000i 7.0

a30/3000i 7.0

a30/3000i 7.0

a30/3000i 7.0

Siemens kW

1FK7105 8.2

1FK7105 8.2

1FK7105 8.2

1FK7105 8.2

Fagor kW

FXM75.20 7.0

FXM75.20 7.0

FXM75.20 7.0

FXM75.20 7.0

Heidenhain kW

QSY190D 9.6

QSY190D 9.6

QSY190D 9.6

QSY190D 9.6

Auto tool changer

ATC type

Disk/Chain

Disk/Chain

Disk/Chain

Disk/Chain

Cam type

Arm

Arm

Arm

Arm

Tool selection (Bi-direction)

Random

Random

Random

Random

Tool storage capacity (pcs)

24/32

24/32

24/32

24/32

Max. tool diameter (mm)

Ø115/Ø127 (Ø160/Ø250)

Ø115/Ø127 (Ø160/Ø250)

Ø115/Ø127 (Ø160/Ø250)

Ø115/Ø127 (Ø160/Ø250)

Max. tool length (mm)

350

350

350

350

Max. tool weight (kg)

20

20

20

20

Miscellaneous

Air requirement (kg/cm2)

6

6

6

6

Voltage

220

220

220

220

Power requirement (kVA)

50

50

50

50

Coolant tank capacity (L)

900

900

900

900

Machine weight (kgs)

15500

16000

17000

18000

Machine height (mm)

4440 (optional 5100 with Z stroke 1100)

Floor space (L*W mm)

5800x4150

6090x4150

8130x4150

10310x4150

  • We reserve the right to modify the design and specification without notice in advance.
    Above specifications are for reference only. Correct specifications are based on actual machine.
