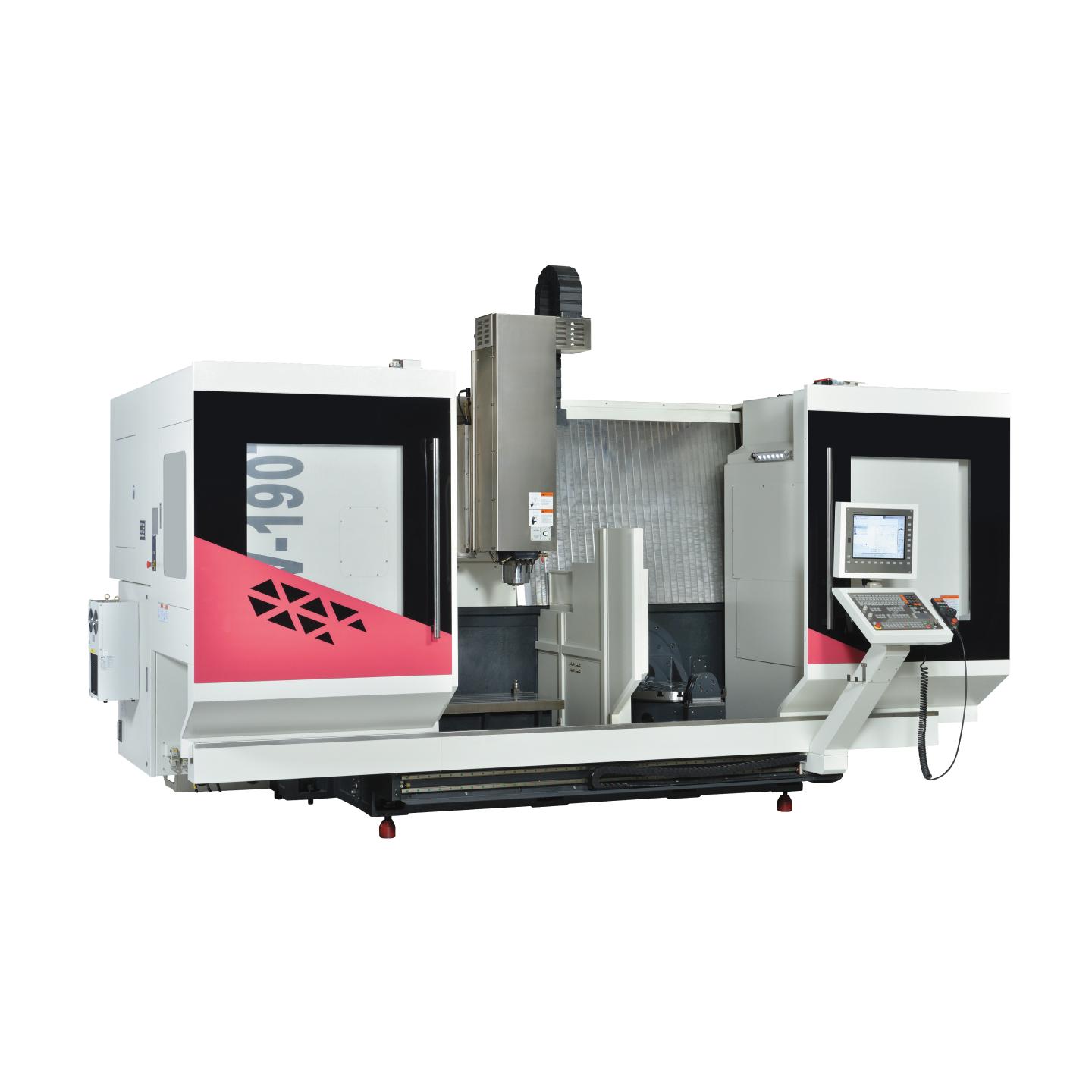

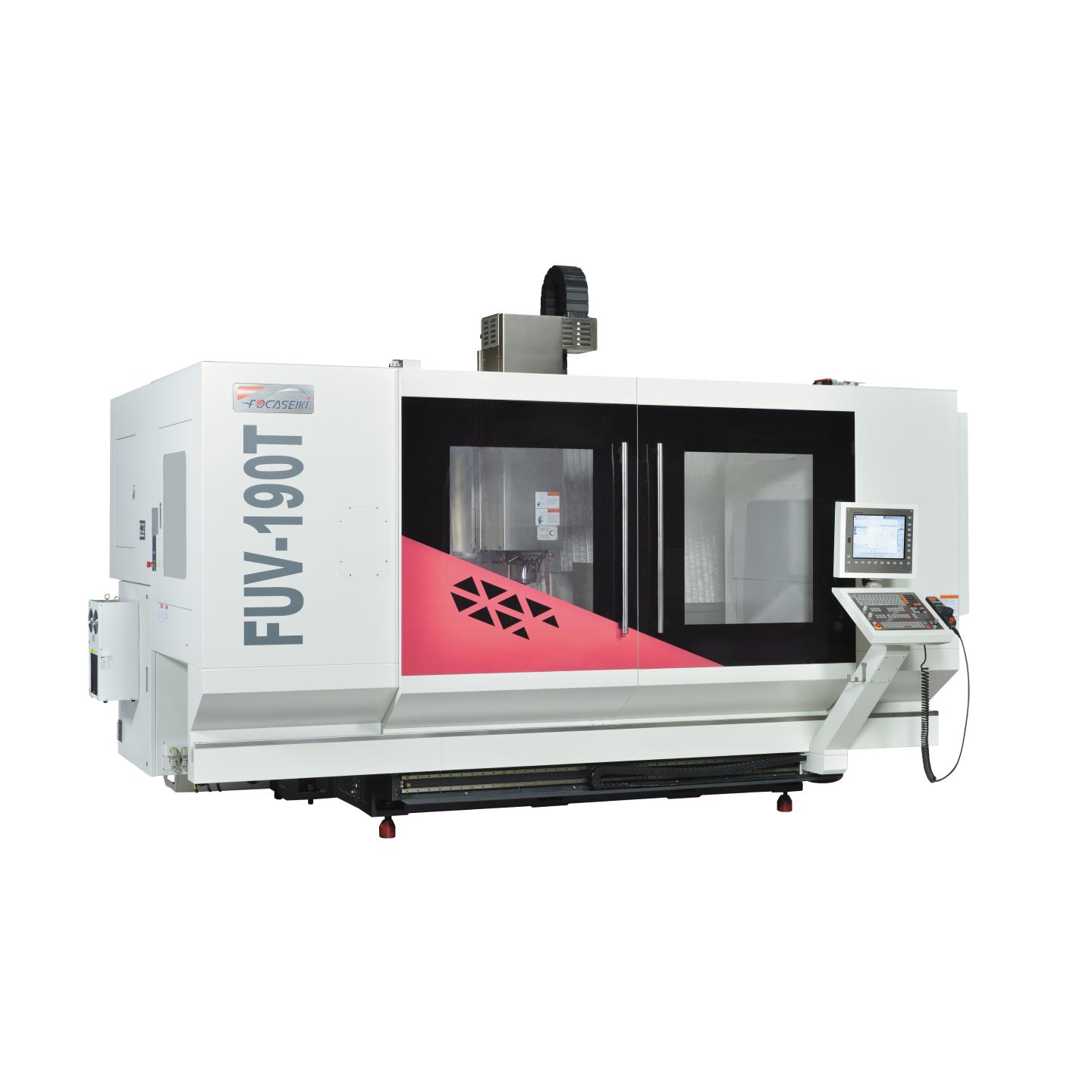

High Performance Machining Center(3+5 Axis)
◉ Self-developed thermal compensation on Heidenhain controller.
◉ Insulation coolant plate with direct spindle motor,optional water coolant spindle motor.
◉ Twin ATC, to readuce tool changing time druing partition proccessing.

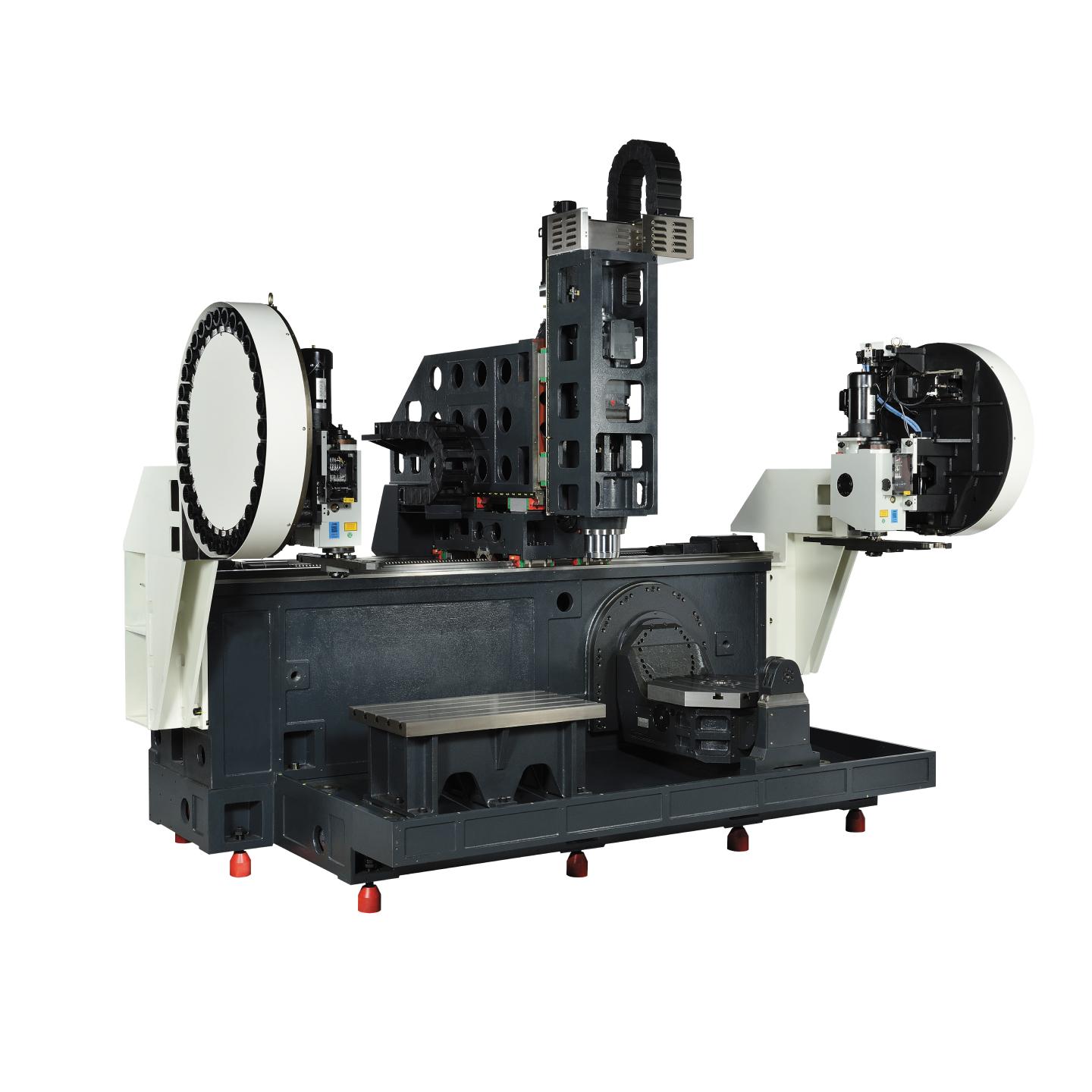

◉ All in one base and machine body ,high stability of rigidity and accuracy.
◉ High resolution encoder.
MODEL | UNT | FUV-170T | FUV-190T | FUV-210T |
Spindle | ||||
Spindle transmission |
| Direct Drive | Direct Drive | Direct Drive |
Spindle tapper |
| ISO 40( OPT:HSKA63) | ISO 40( OPT:HSKA63) | ISO 40( OPT:HSKA63) |
Spindle r.p.m. | r.p.m | 12000rpm(OPT : 15000rpm,18000rpm) | 12000rpm(OPT : 15000rpm,18000rpm) | 12000rpm(OPT : 15000rpm,18000rpm) |
Travel | ||||
Travel ranges(X*Y*Z) | mm | 1700x540x460 | 1900x540x460 | 2100x540x460 |
Spindle nose to table surface | mm | 150 ~ 610 | 150 ~ 610 | 150 ~ 610 |
Table size | mm | 700 x 500 | 900 x 500 | 1100 x 500 |
Rotary Table diameter | mm | 650 | 650 | 650 |
T-slot (width*distance*number) | mm | 5 x 100 x 18(Fixed table) | 5 x 100 x 18(Fixed table) | 5 x 100 x 18(Fixed table) |
Max. table load | kgs | 1200 | 1600 | 2000 |
ATC | ||||
Tool magazine capacity | T | 24*2 tools(OPT : 32*2 Tools) | 24*2 tools(OPT : 32*2 Tools) | 24*2 tools(OPT : 32*2 Tools) |
Tool shank |
| ISO 40/ HSKA63 | ISO 40/ HSKA63 | ISO 40/ HSKA63 |
Max. tool length | mm | 250 | 250 | 250 |
Max. tool weight | kgs | 7 | 7 | 7 |
Rapid Speed | ||||
X/Y/Z axis | m/min | 16/16/16 | 16/16/16 | 16/16/16 |
B/C axis | rpm | C AXIS 25 rpm/B AXIS 12.5 rpm | C AXIS 25 rpm/B AXIS 12.5 rpm | C AXIS 25 rpm/B AXIS 12.5 rpm |
Cutting federate | m/mm | 12 | 12 | 12 |
B/C AXIS | ||||
Center hole size | mm | 70H7 x 19(50H7 x 30) | 70H7 x 19(50H7 x 30) | 70H7 x 19(50H7 x 30) |
T-slot number/pitch | mm | 5 x 100 x 18 | 5 x 100 x 18 | 5 x 100 x 18 |
Max.table load | kgs | 300 | 300 | 300 |
Others | ||||
Machine Dimension | mm | 4400 x 2600 x 3000 | 4600 x 2600 x 3000 | 4800 x 2600 x 3000 |
Machine weight | kgs | 17000 | 18000 | 19000 |
Coolant tank capacity | L | 720 | 750 | 780 |
- We reserve the right to modify the design and specification without notice in advance.
Above specifications are for reference only. Correct specifications are based on actual machine.
Description in () are optional accessories.
