FUV170/200/250/320/400/500Product

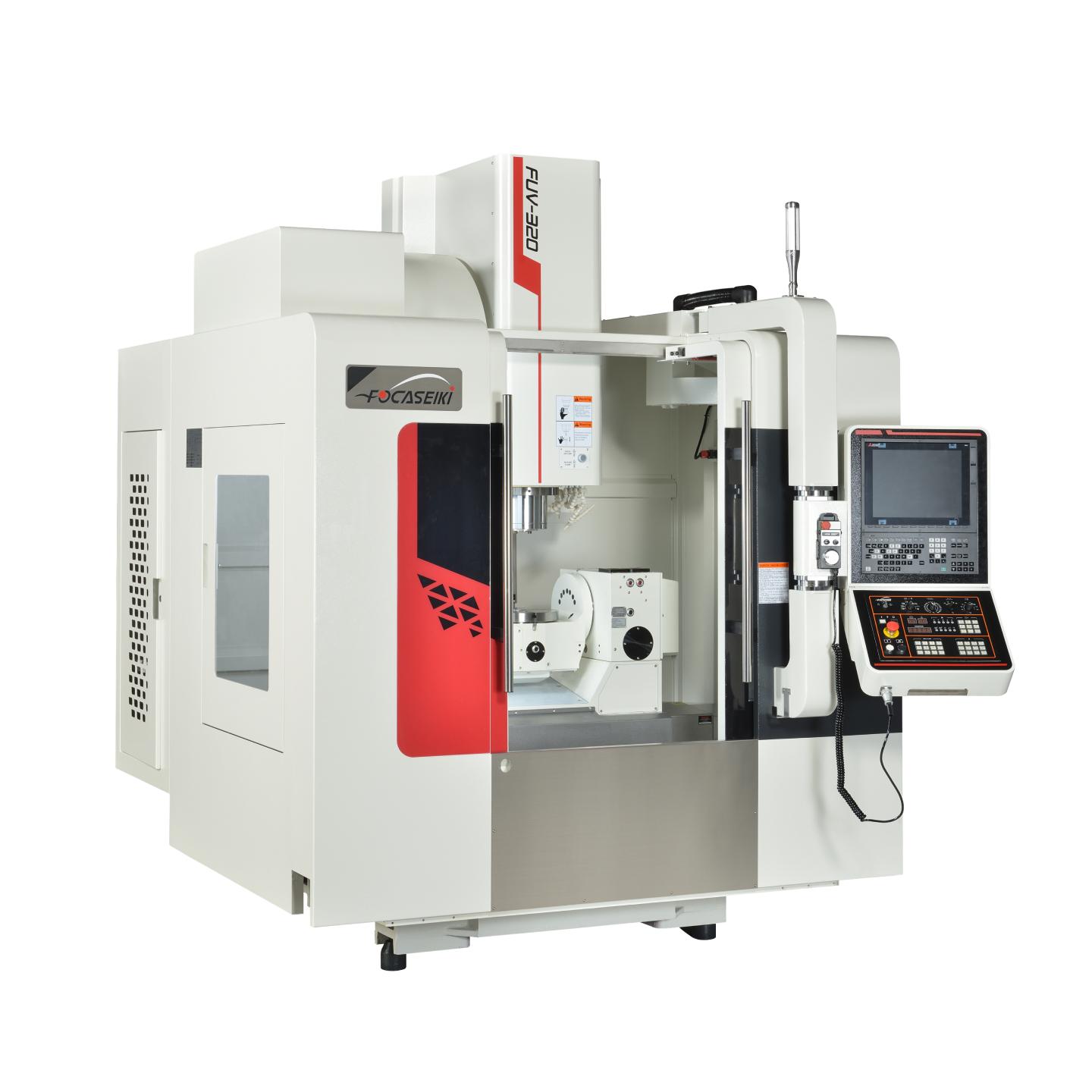

CNC 5 Axes Simultaneous Machining Center

FUV170/200/250/320/400/500

FUV170/200/250/320/400/500

Multi-Function 3+2 4+1 Simultaneous 5Axis Machining Center

 ◉ HQ-container packing ( Lowest shipping fee) 3 or 4sets.

 ◉ Built -in Spindle as standard.

 ◉ Reservoir -type Lubricator, Bronze Tube oil Circait.

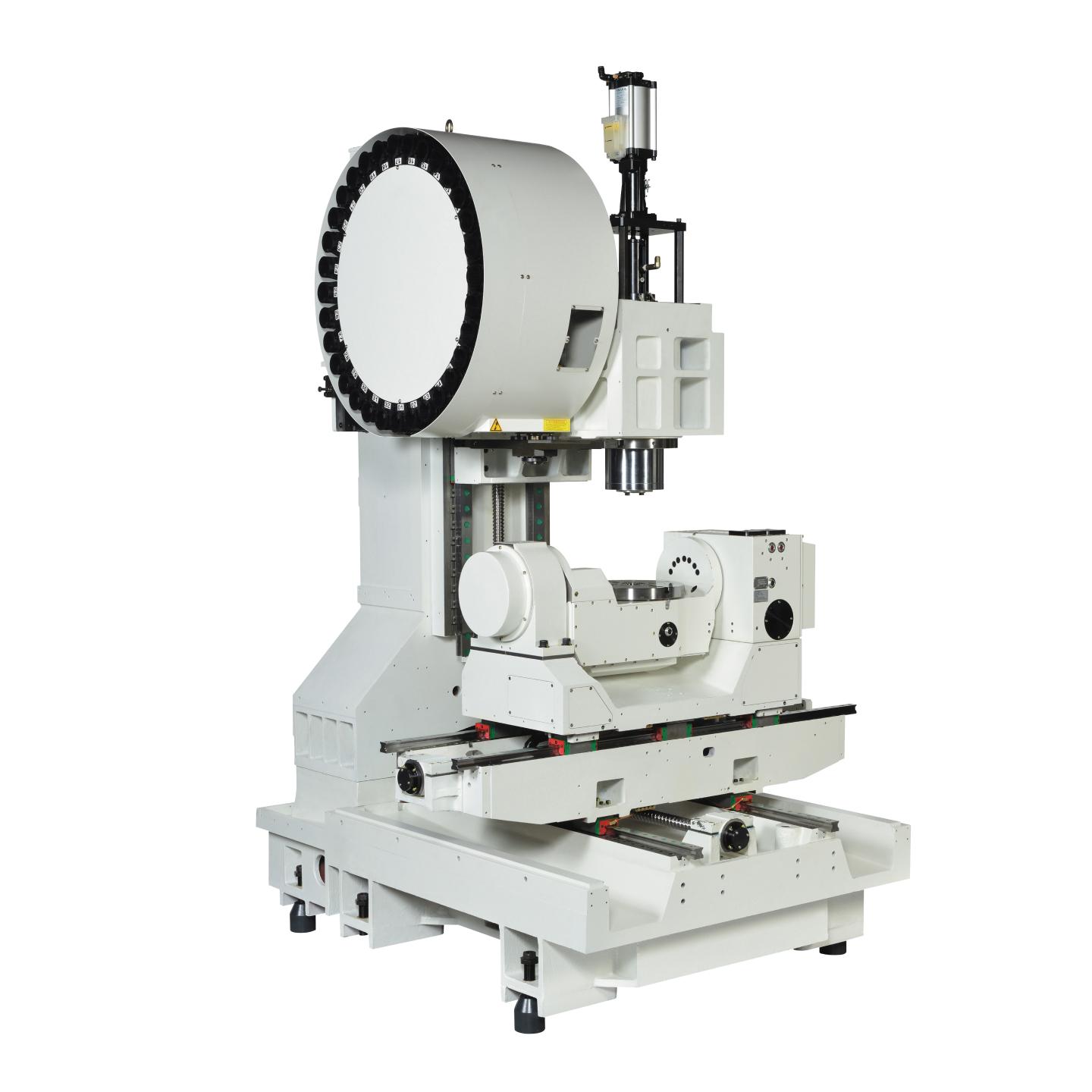

 ◉ 3 Axes Adopted Roller Type Linear Guideways.

 ◉ 4 Slide way on base (Y axis) / for over 1100 structure.

 ◉ Axis Control Vertical Machining Center (4+1 also ).

 ◉ Rotary Table with External Encoder 10''/arc (Option 5"arc), 0.001 minimum Position.

 ◉ Movealde Control.

 ◉ Panel for Easier Operation.

 ◉ Small Footprint but Bigger Travel of Machine.

 ◉ Aesthetics Design Cover.

MODEL

UNT

FUV-320

FUV-400

FUV-500

Table

Table Size

mm

Ø320

Ø400

Ø500

Tavel Range (X/Y/Z)

mm

460 x 500 x 500

460 x 500 x 500

600 x 700 x 520

T-Slot Size

mm

12H7

12H8

14H7

Max. Table Load (0°/90°)

kg

200 / 100

200 / 150

300 / 250

Dia. of Table Center Hole

mm

Ø50

Ø50

Ø70

Spindle Nose To Table Surface

mm

15 ~ 515

15 ~ 515

15 ~ 515

A Axis, Tilt

deg

+30° ~ -120°

+30° ~ -120°°

+30° ~ -120°

C Axis, Rotary

deg

360°

360°

360°

Spindle

Spindle Transmission



Direct

Direct

Direct

Spindle Motor

kw

7.5 / 11 (15 / 18.5)

7.5 / 11 (15 / 18.5)

7.5 / 11 (15 / 18.5)

Spindle Speed (Direct)

rpm

10000 (12000/15000)

10000 (12000/15000)

10000 (12000/15000)

ATC

Tool Shank



ISO 40

ISO 40

ISO 40

Tool Capacity

T

24 (30/36)

24 (30/36)

24 (30/40)

Max. Tool Length

mm

250

250

250

Max. Tool Dia.

mm

24/30T: Ø75/Ø150
 36T: Ø65/Ø130

24/30T: Ø75/Ø150
 36T: Ø65/Ø130

24/30T: Ø75/Ø150
 40T: Ø75/Ø127

Rapid Speed

X/Y/Z Axis

m/min

30 / 30 / 24

30 / 30 / 24

30 / 30 / 24

A/C Axis

rpm

25 / 25

25 / 25

16 / 11

Cutting Feedrate

m/min

12

12

12

Others

Machine Dimension (with chip auger)

mm

2880 x 3200 x 3045

2880 x 3200 x 3045

3560 x 3170 x 3250

Machine Dimension (with chip conveyor)

mm

3330 x 3200 x 304

3330 x 3200 x 3045

4010 x 3170 x 3250

Machine Weight

kgs

6600

6600

8700

Coolant Capacity

L

350

350

400

  • We reserve the right to modify the design and specification without notice in advance.
     Above specifications are for reference only. Correct specifications are based on actual machine.
