FSV-400/500/600/700Product

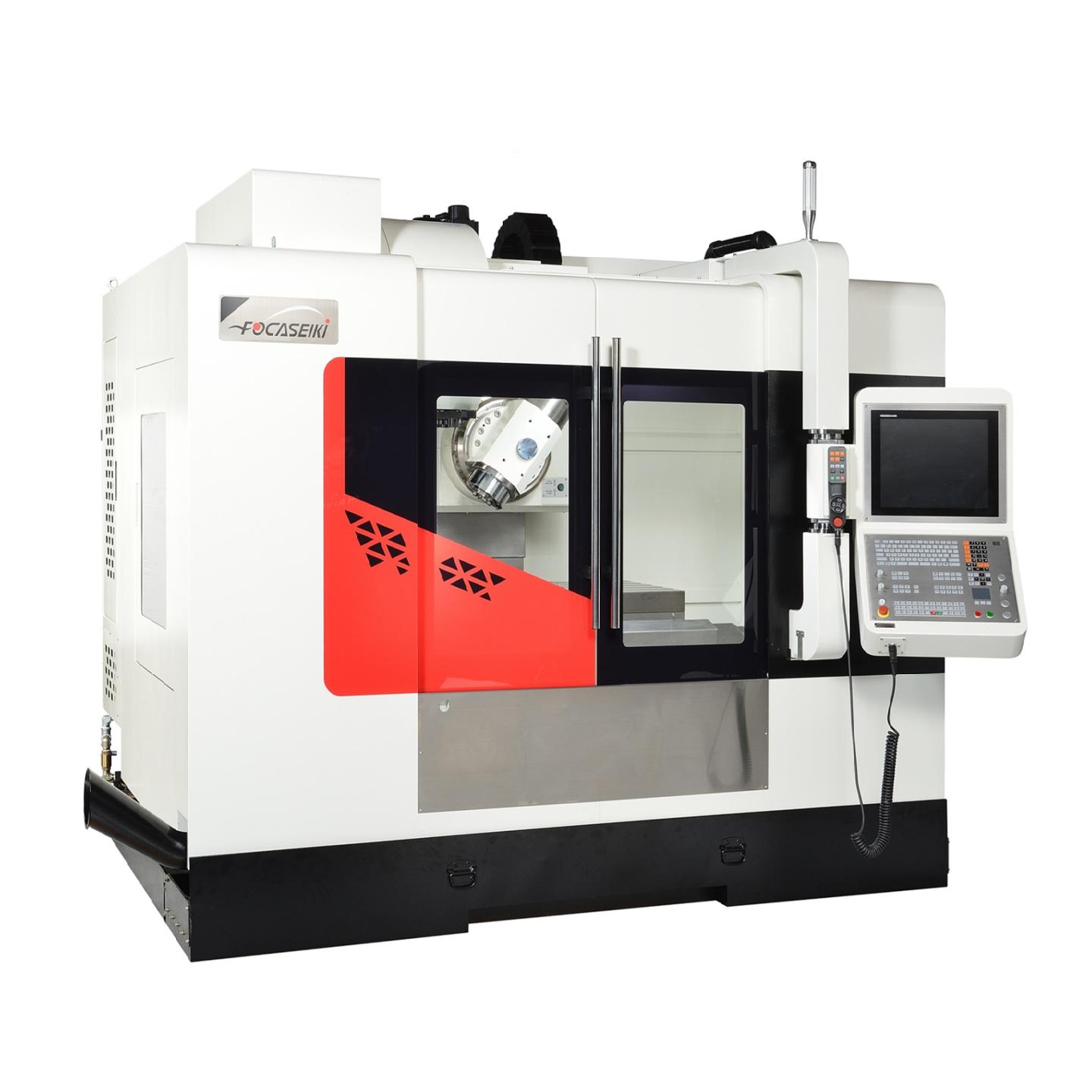

CNC 5 Axes Simultaneous Machining Center

FSV-400/500/600/700

FSV-400/500/600/700

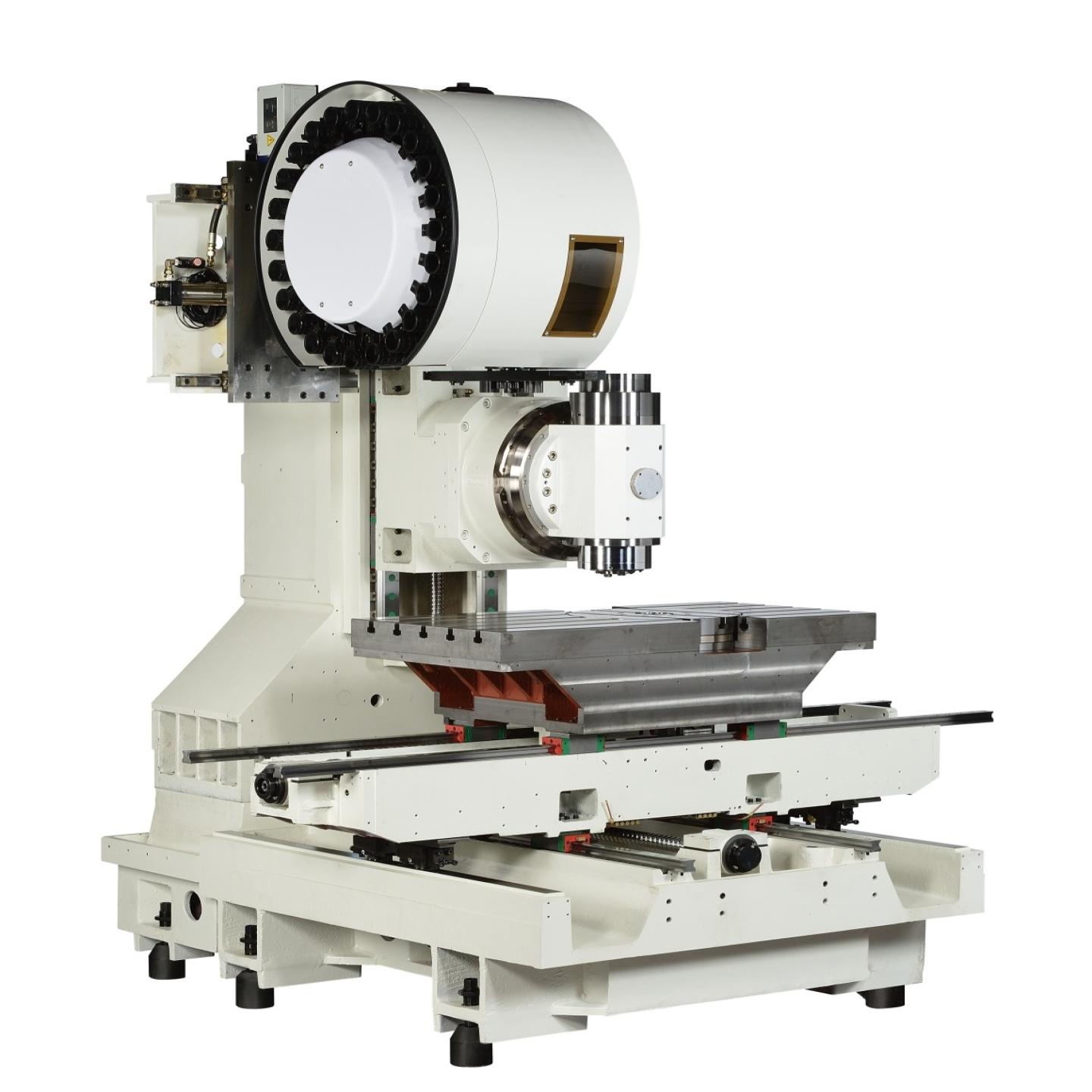

Vertical Type Swivel Head With C Axis

 ◉ 5 Axis Control Vertical Machining Center.

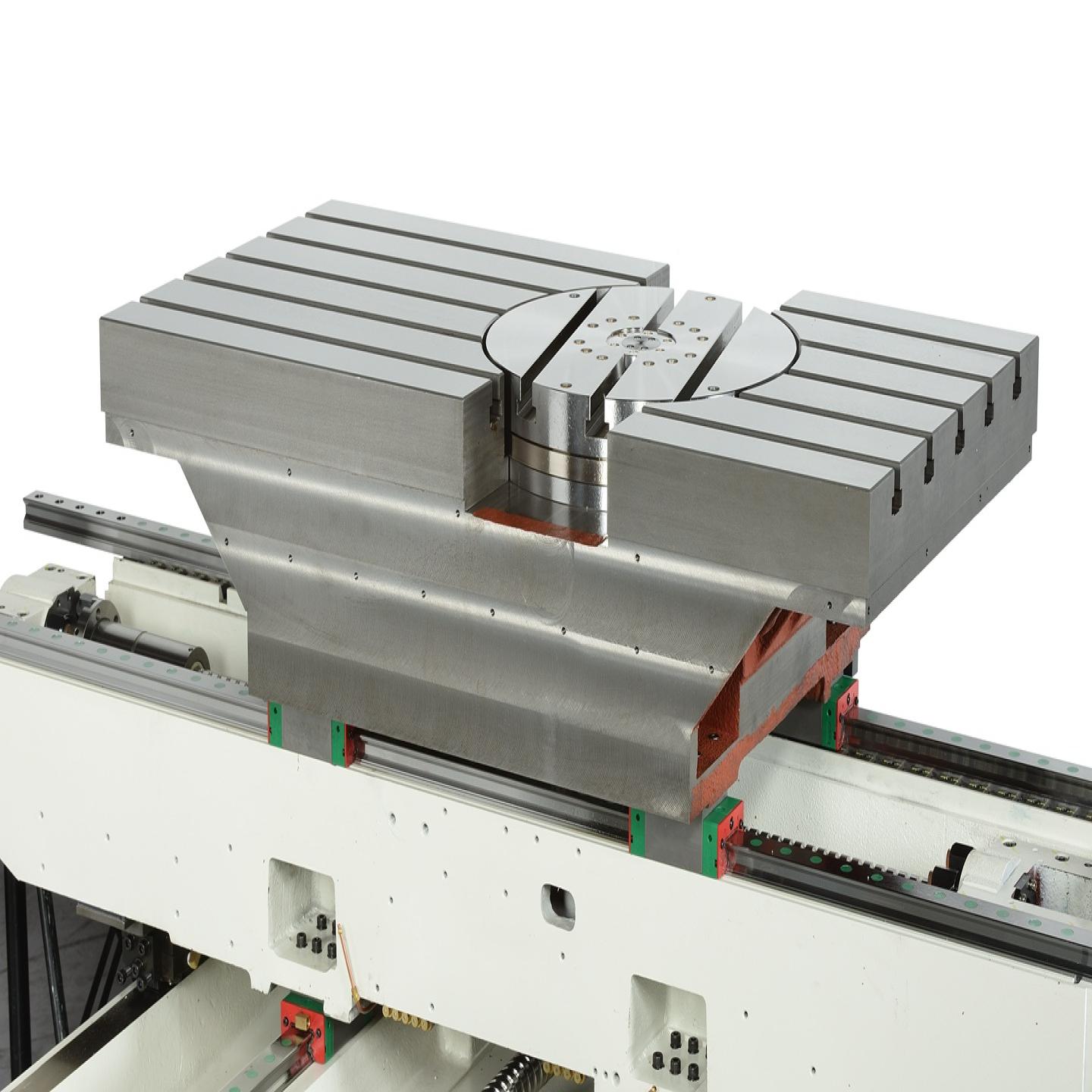

 ◉ Rotary Table And Standard T-slot Table On The Same Plane.

 ◉ Direct Drive C Axis With High Position Accuracy (With External Encder 5"/arc).

  ◉ Turning Function As Option.

MODEL

UNT

400

500

Rectangular Table

Table size

mm

1100 x 560

1100 x 500

T-Slot

mm

18 x 5 x 100

18 x 5 x 100

Max Table Loading Capacity

r.p.m

900

900

Spindle

Spindle type



Built-in

Built-in

Spindle tapper



ISO 40 (HSK-A63)

ISO 40 (HSK-A63)

Spindle speed

r.p.m

12000 (15000)

12000 (15000)

Travel

X/Y/Z

mm

1100/600/535

1100/600/535

B axis



+120°~-120°

+120°~-120°

C axis



0.001°

0.001°

Spindle nose to table surface

mm

30~565(-165~565)

30~565(-165~565)

ATC

Tool magazine capacity



24(30,36,40)

24(30,36,40)

Tool shank



ISO 40 (HSK-A63)

ISO 40 (HSK-A63)

Max. tool length

mm

300

300

Max. tool diameter

mm

24T/30T (75/150) 36T (65/130) 40T (75/127)

24T/30T (75/150) 36T (65/130) 40T (75/127)

Max. tool weight

kgs

7

7

Rapid Speed

X/Y/Z

m/min

30/30/24(36/36/30,48/48/30)

30/30/24(36/36/30,48/48/30)

Cutting federate

m/mm

12

12

B/C AXIS

C axis table size

mm

400

500

X axis table T-Slot

mm x No.m

18x3x100

18x5x100

C axis speed

rev/min

115(turning 1000/1200)

115(turning 1000/1200)

B axis speed

r.p.m

50

50

C axis Max load

kgs

500

500

Others

Machine Dimension LxWxH

mm

3660x3160x3300

3660x3160x3300

Machine weight

Net/kgs

6700

6700

Coolant tank capacity

liters

400

400

Pneumatic supply

kg/cm²

4-6

4-6



MODEL

UNT

600

700

Rectangular Table

Table size

mm

1350 x 600

1350 x 700

T-Slot

mm

18 x 5 x 100

18 x 5 x 100

Max Table Loading Capacity

r.p.m

1200

1200

Spindle

Spindle type



Built-in

Built-in

Spindle tapper



ISO 40 (HSK-A63)

ISO 40 (HSK-A63)

Spindle speed

r.p.m

12000 (15000)

12000 (15000)

Travel

X/Y/Z

mm

1250/700/535

1250/700/535

B axis



+120°~-120°

+120°~-120°

C axis



0.001°

0.001°

Spindle nose to table surface

mm

0~535(-165~565)

0~535(-165~565)

ATC

Tool magazine capacity



24(30,36,40)

24(30,36,40)

Tool shank



ISO 40 (HSK-A63)

ISO 40 (HSK-A63)

Max. tool length

mm

300

300

Max. tool diameter

mm

24T/30T (75/150) 36T (65/130) 40T (75/127)

24T/30T (75/150) 36T (65/130) 40T (75/127)

Max. tool weight

kgs

7

7

Rapid Speed

X/Y/Z

m/min

30/30/24(36/36/30,48/48/30)

30/30/24(36/36/30,48/48/30)

Cutting federate

m/mm

12

12

B/C AXIS

C axis table size

mm

600

700

X axis table T-Slot

mm x No.m

18x5x100

18x7x100

C axis speed

rev/min

100

100

B axis speed

r.p.m

50

50

C axis Max load

kgs

850

600

Others

Machine Dimension LxWxH

mm

3960x3160x3300

3960x3160x3300

Machine weight

Net/kgs

8000

8000

Coolant tank capacity

liters

450

450

Pneumatic supply

kg/cm²

4-6

4-6





  • We reserve the right to modify the design and specification without notice in advance.
     Above specifications are for reference only. Correct specifications are based on actual machine.
     Description in () are optional accessories.
