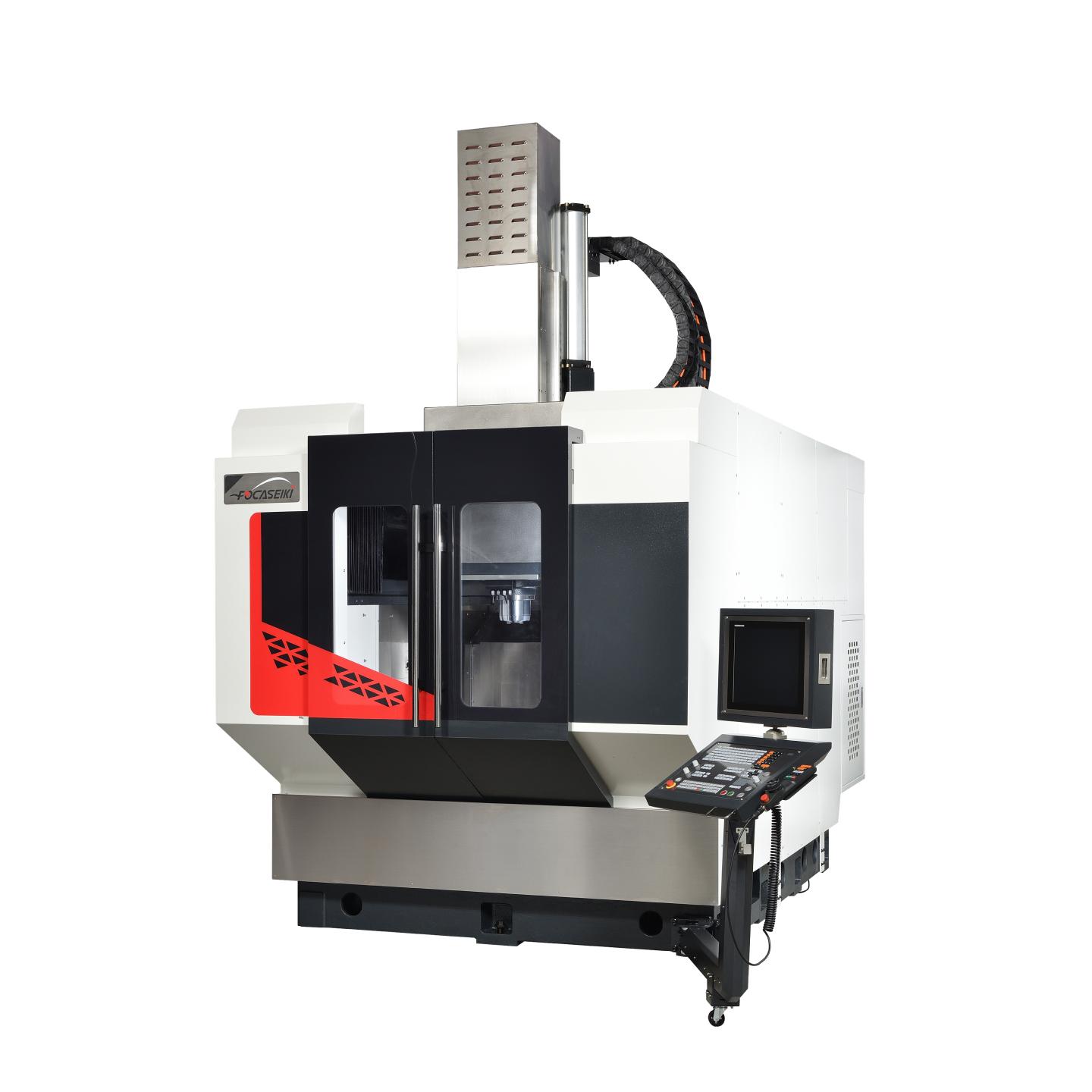

CNC 5 Axes Simultaneous Machining Center

FUV-800

FUV-800

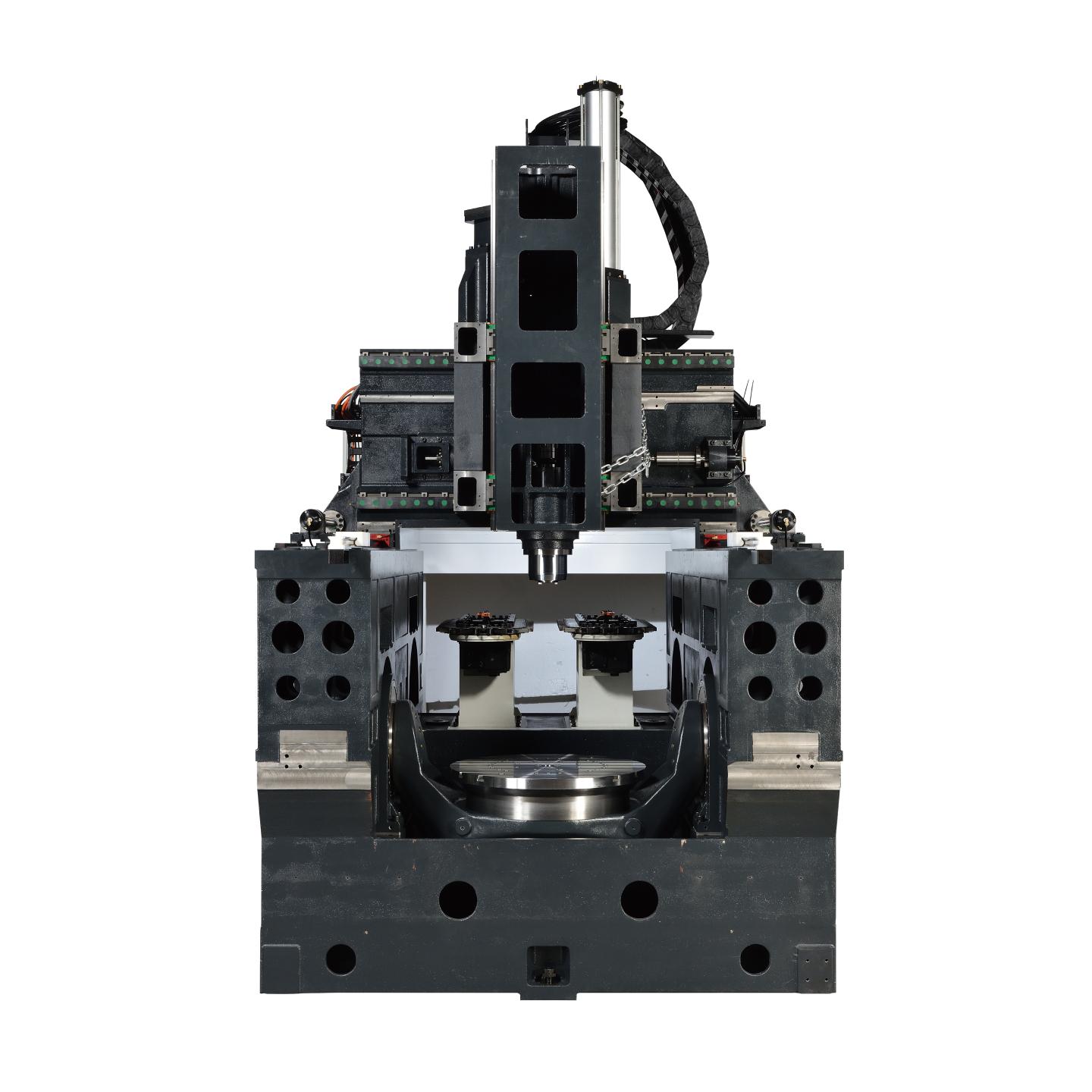

 Gantry-Type 5 Axis FUV-800 Machining Center

  ◉ Spindle Move By 3 Linear Axes & No Rotary Axis Between The Tool And The Machine Body.
  ◉ Same Stability In All Travels Of X And Y Axes.
  ◉ Highest Rigidity In Roughing Processes With High Torque Spindle.
  ◉ Table Moved By Swiveling Rotary Axes With Best Accuracy.
  ◉ Best Servo Response To Milling Forces Massive Gantry Sliding On 2 Synchronized Axes.
  ◉ All Body Made Of High Quality Casting.

MODEL

UNT

800

Spindle

Spindle type



Direct

Spindle tapper



ISO40/HSK-A63(ISO50/HSK-A100)

Spindle speed



12000(15000/18000/20000)r.p.m

Travel

X/Y/Z

mm

800/920/650

A Axis tilting range



-120°~+120°

C Axis rotating range



360°

Spindle nose to table surface

mm

100-750

ATC

Tool magazine capacity



ISO40 32 (40/60/64/80/120)
 ISO50 32(40/60)

Tool Shank



ISO40/HSK-A63 (ISO50/HSK-A100)

Max. tool length

mm

300mm(40# / 50#)

Max. tool diameter

mm

Ø75 / Ø 125 mm (40# Flat Tool Magazine)
 Ø125 / Ø 200 mm (50# Flat Tool Magazine)

Max. tool weight

kgs

ISO40/7 (ISO50/15)

Rapid Speed

X/Y/Z axis

mm/min

36(48)

A/C axis

rpm

60/90

Cutting federate

m/mm

20

A/C AXIS

Table size

mm

800

T-slot number/pitch

mm

5 x 125 x 14

Max. table loading

kgs

1200

Center hole

mm

50H8

Others

Machine Dimension LxWxH

mm

3450 x 5310 x 3600

Machine Weight

net/kgs

21000

Coolant tank capacity

liters

210

Pneumatic supply

kg/cm²

4-6

  • We reserve the right to modify the design and specification without notice in advance.
    Above specifications are for reference only. Correct specifications are based on actual machine.
    Description in () are optional accessories.
