Europe Design High Speed Machining
◉ 5 axes simultaneous control
◉ The advanced control will dramatically increase machining accuracy, efficiency and safety during machining
◉12000 rpm direct-drive spindle
◉ 32 (48/54/60) tool magazine
◉Handles complicated machining with ease

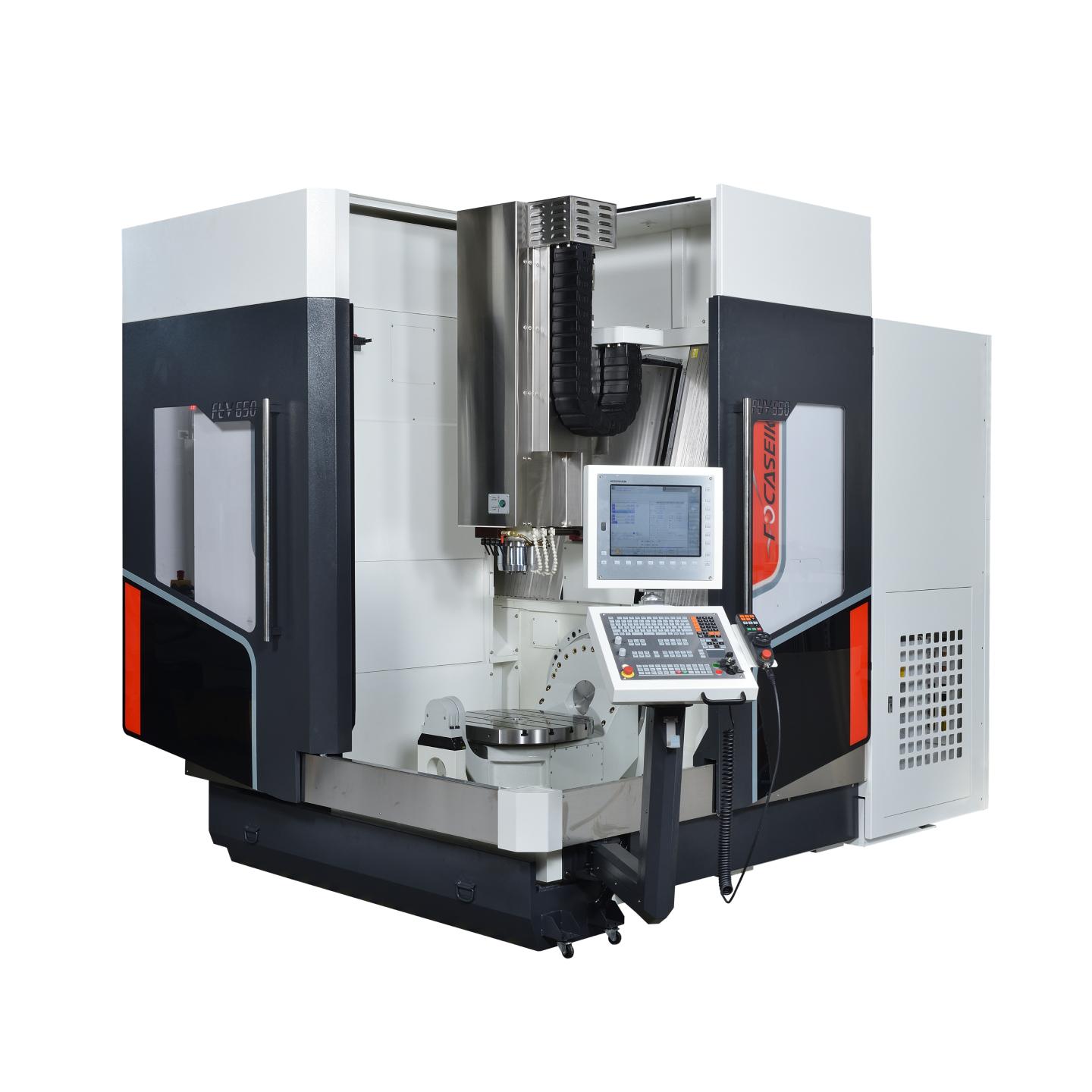

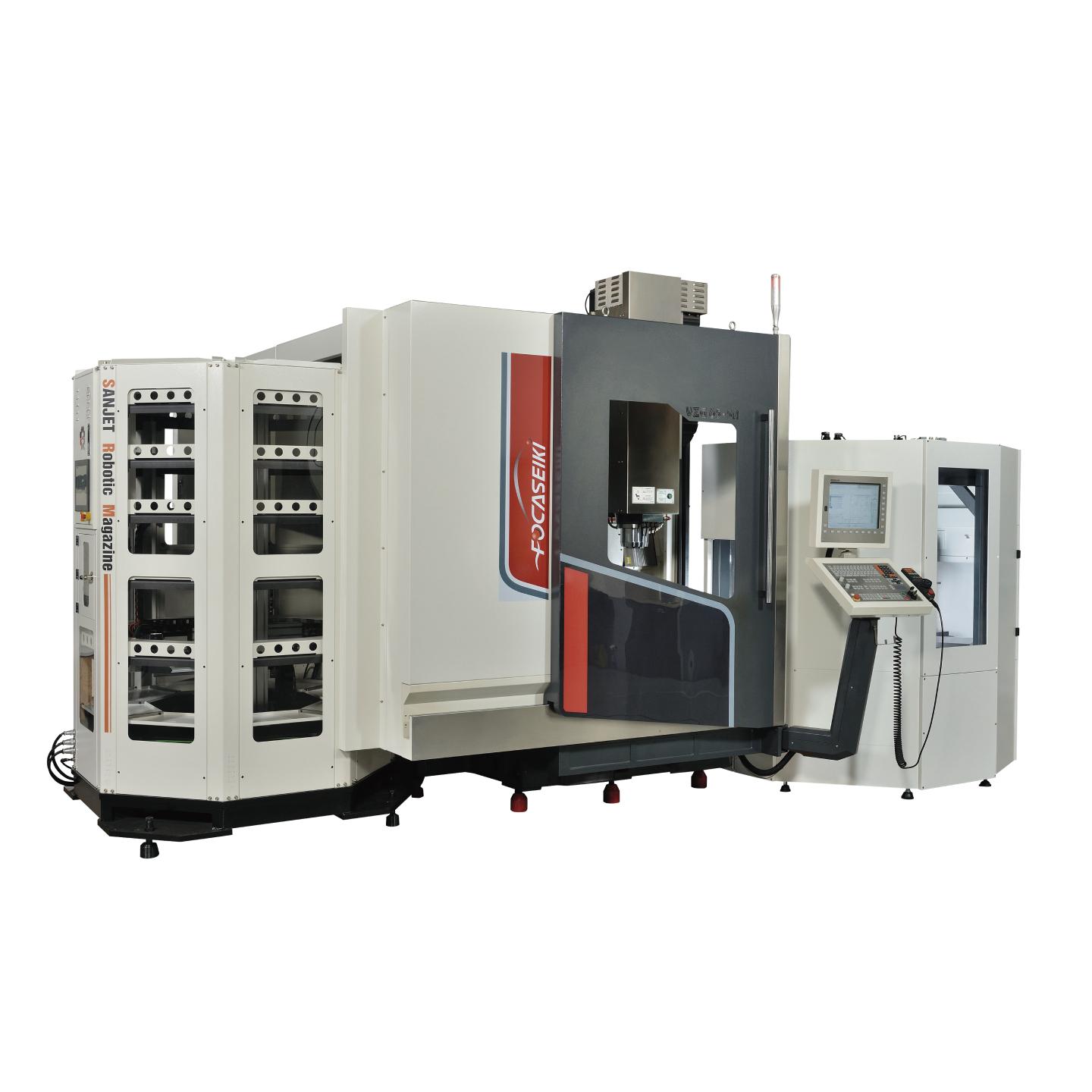

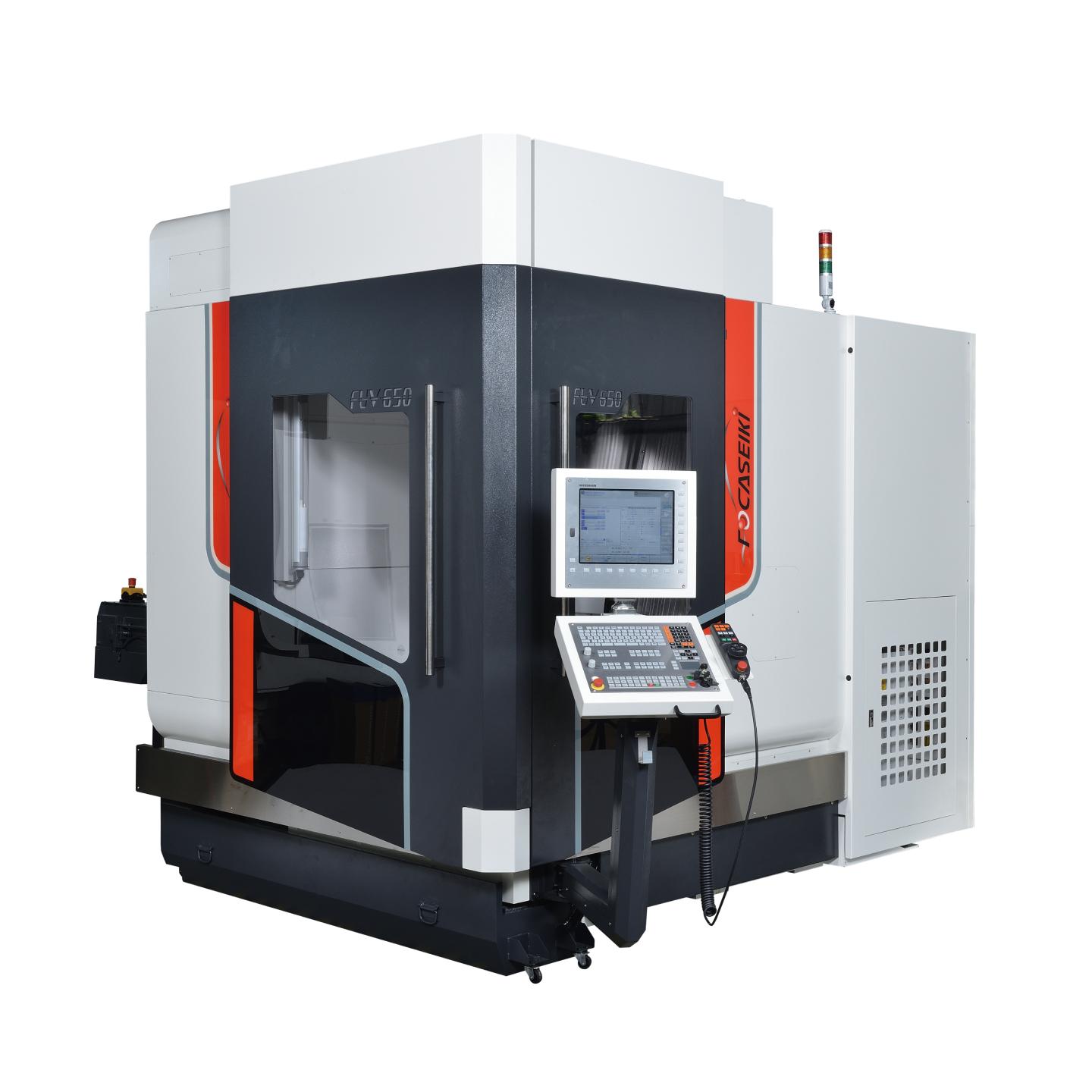

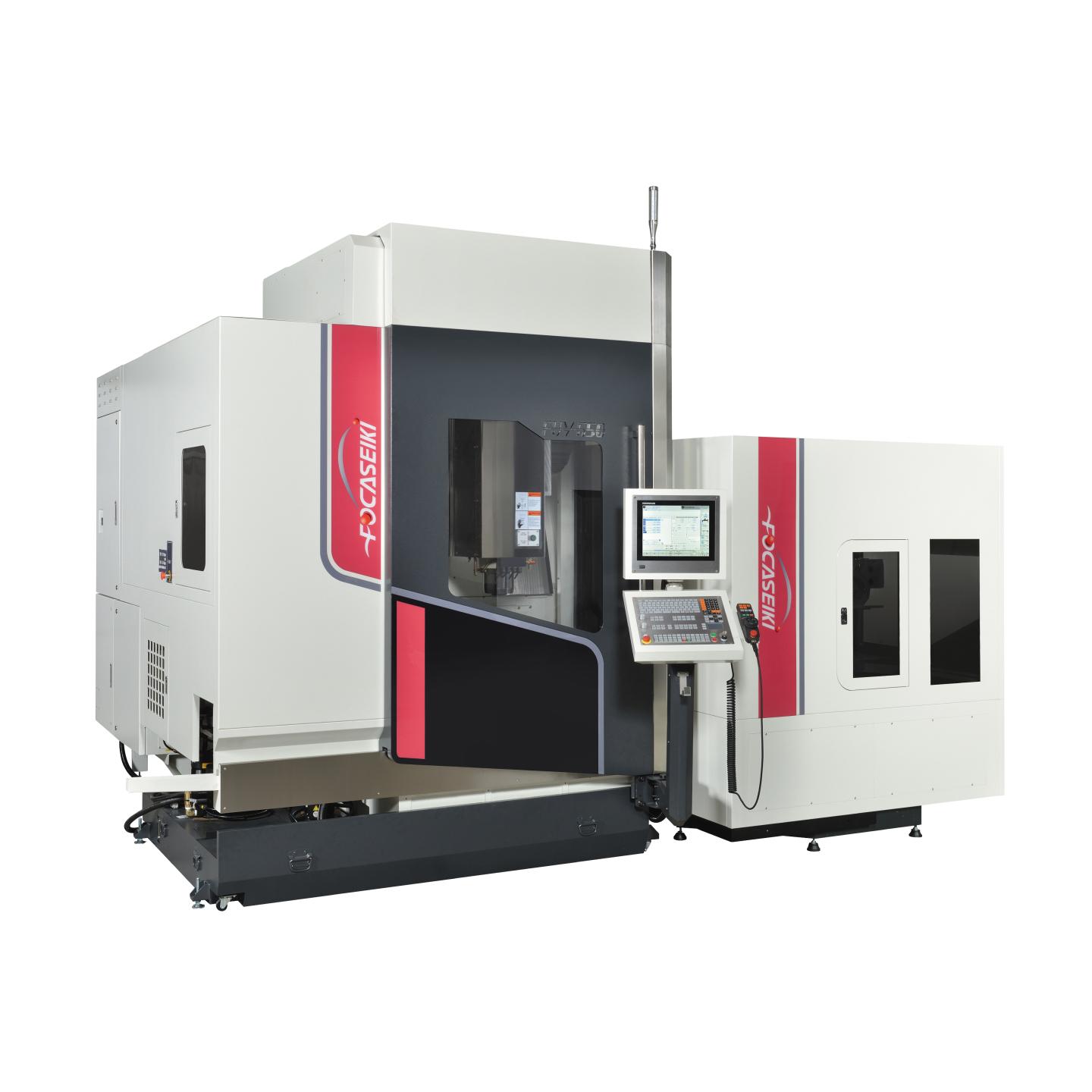

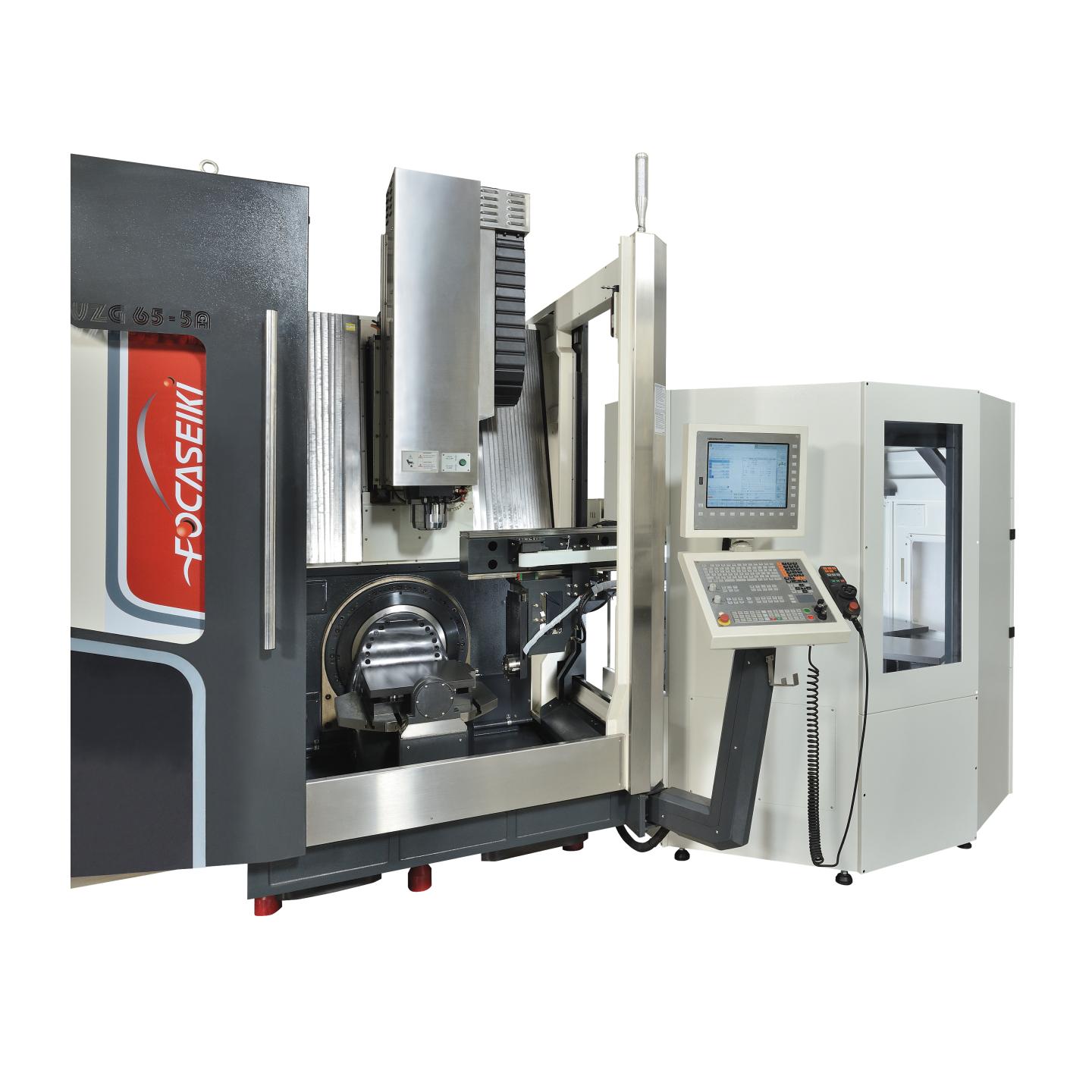

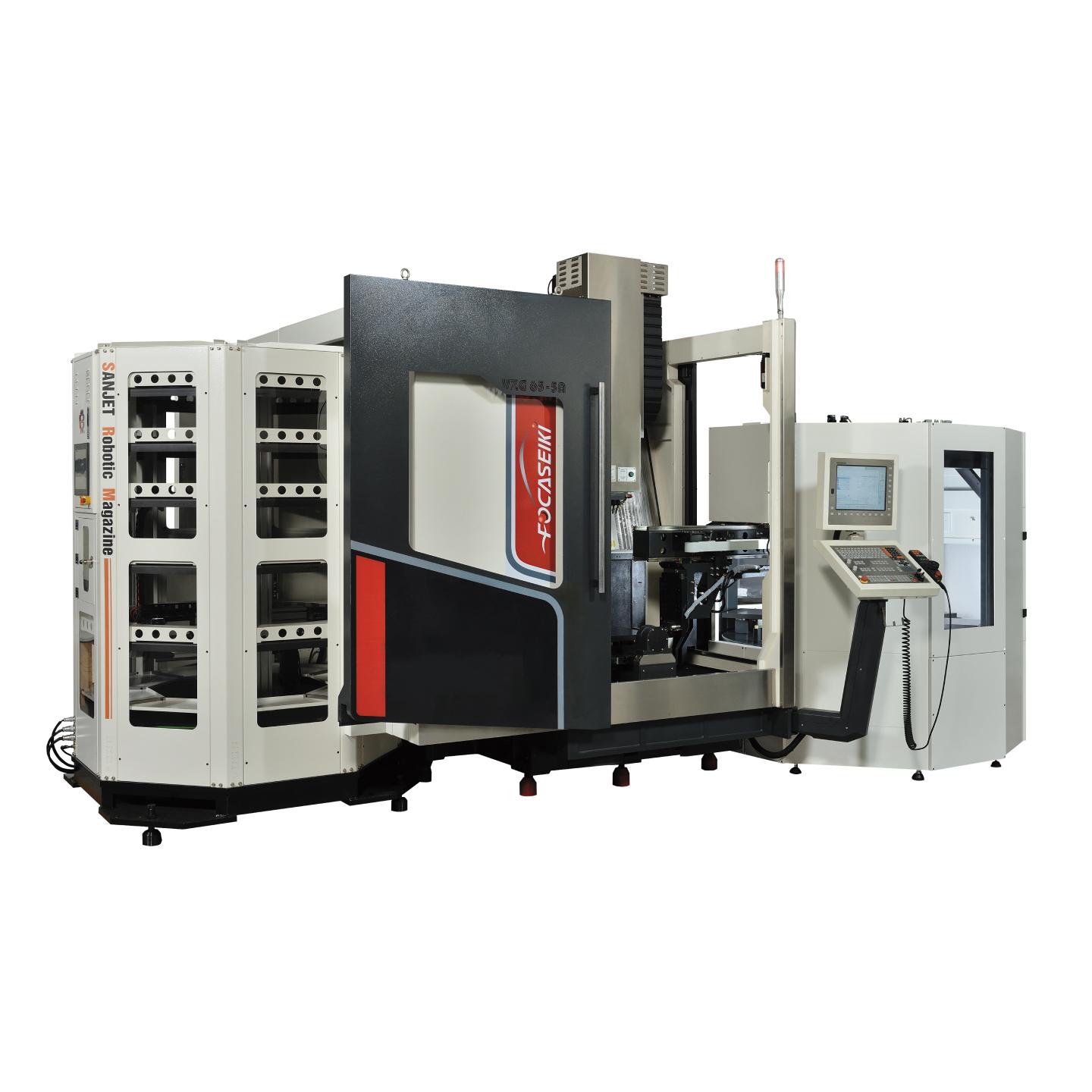

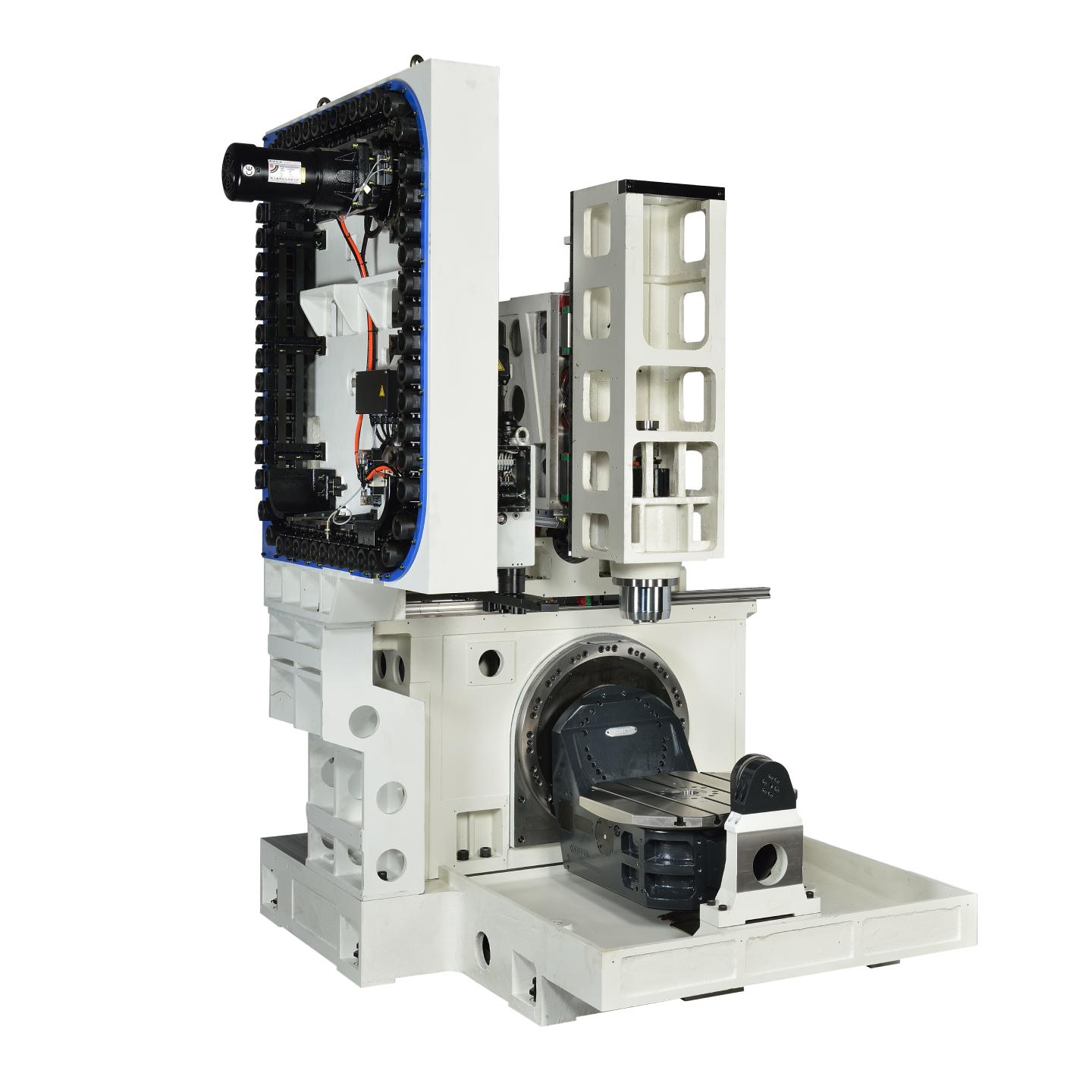

◉Best bell theorem structural design
◉Linear scales / encoders on 5 axes
◉Thermal isolation design compensation kit
MODEL | UNT | 650 | 720 |
Spindle | |||
Spindle transmission | Direct (Built-in) | Direct(Built-in) | |
Spindle tapper | ISO 40 (HSK63A) | ISO 40 (HSK63A) | |
Spindle | r.p.m. | 12000 (15000/18000/20000/24000) | |
Travel | |||
X/Y/Z | mm | 620/520/460 | 720/600/520 |
B Axis tilting range | -50°~+110° | -50°~+110° | |
C Axis rotating range | 360° | 360° | |
Spindle nose to table surface | mm | 150-610 | 140-660 |
ATC | |||
Tool magazine capacity | T | 32(48/54/60/120/204) | |
Tool Shank | ISO 40 (HSK63A) | ISO 40 (HSK63A) | |
Max. tool length | mm | 250 | 250 |
Max. tool diameter | mm | Ø75/127 (32 tools) | Ø75/127 (32 tools) |
Rapid Speed | |||
X/Y/Z axis | mm/min | 48 | 48 |
B/C axis | rpm | 100/50 (25/25) | 110/50 |
Cutting federate | M/mm | 20 | 20 |
B/C AXIS | |||
Table size (0.D/1.D) | mm | Ø650 | Ø720 |
Center hole size | mm | Ø70H7x19 (Ø50H7x30) | Ø70x29 |
T-slot number/pitch | mm | 5x100x18 | 5x100x18 |
Max. table load | kgs | 300 | 300 |
Others | |||
Machine Dimension | mm | 3145mm x 3890mm x 2930mm | 3195mm x 3890mm x 3030mm |
Machine Weight | kgs | 10000 | 10800 |
Coolant tank capacity | L | 210 | 210 |
Pneumatic supply | kg/cm² | 6 | 6 |
- We reserve the right to modify the design and specification without notice in advance.
Above specifications are for reference only. Correct specifications are based on actual machine.
Description in ( ) are optional accessories.
