VMC 600/860/1160Product

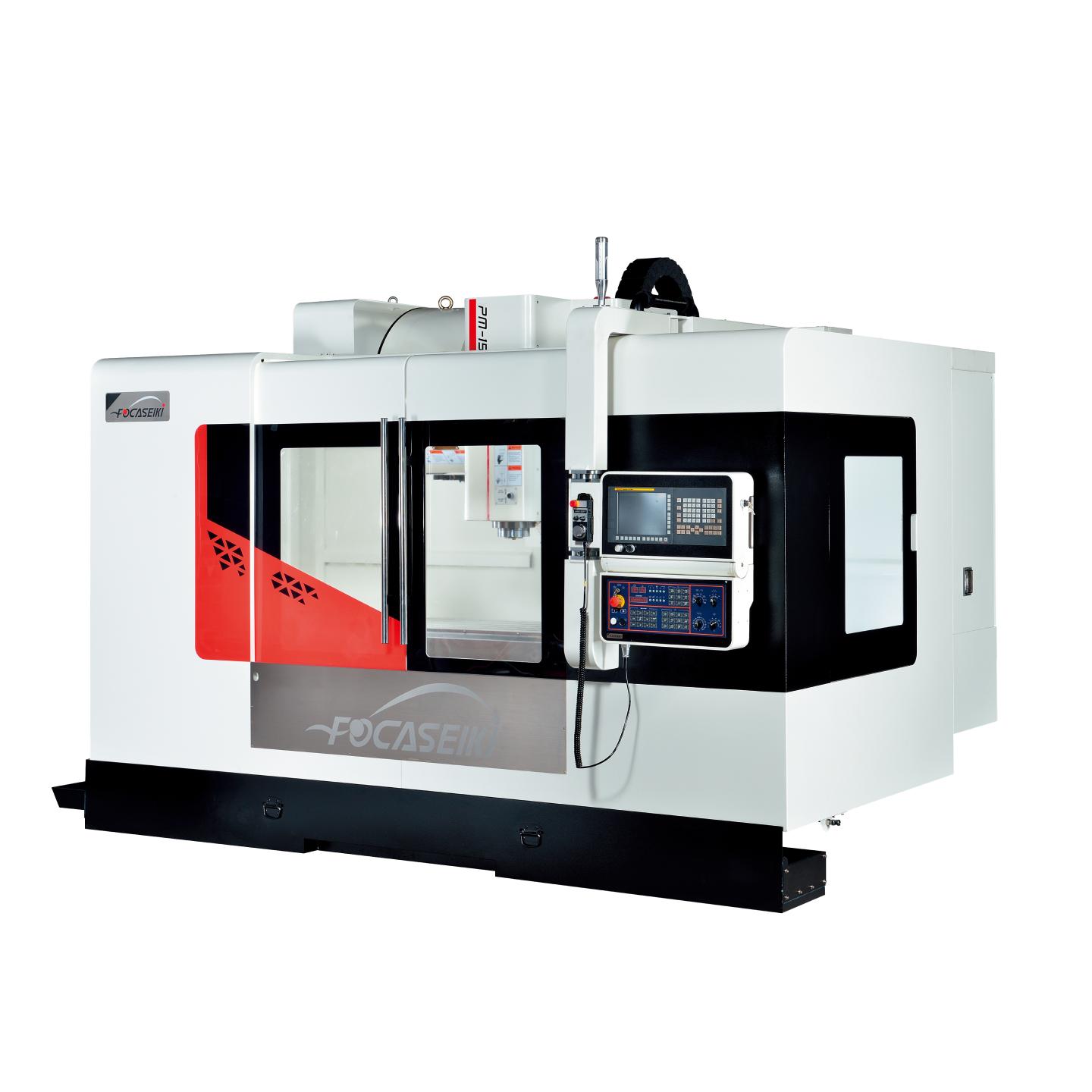

CNC Vertical Machining Center

VMC 600/860/1160

VMC 600/860/1160

Heavier Loading & Higher Precision

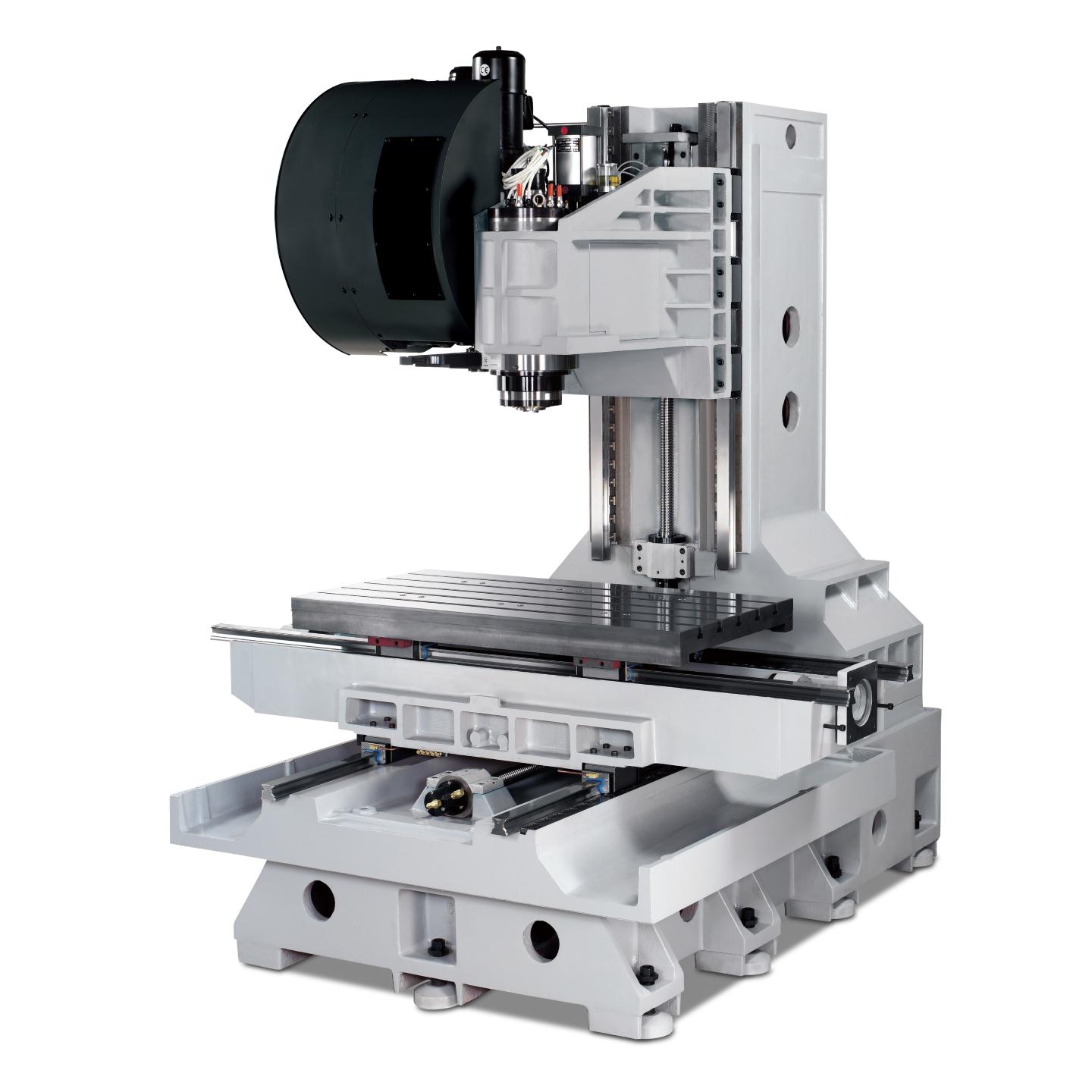

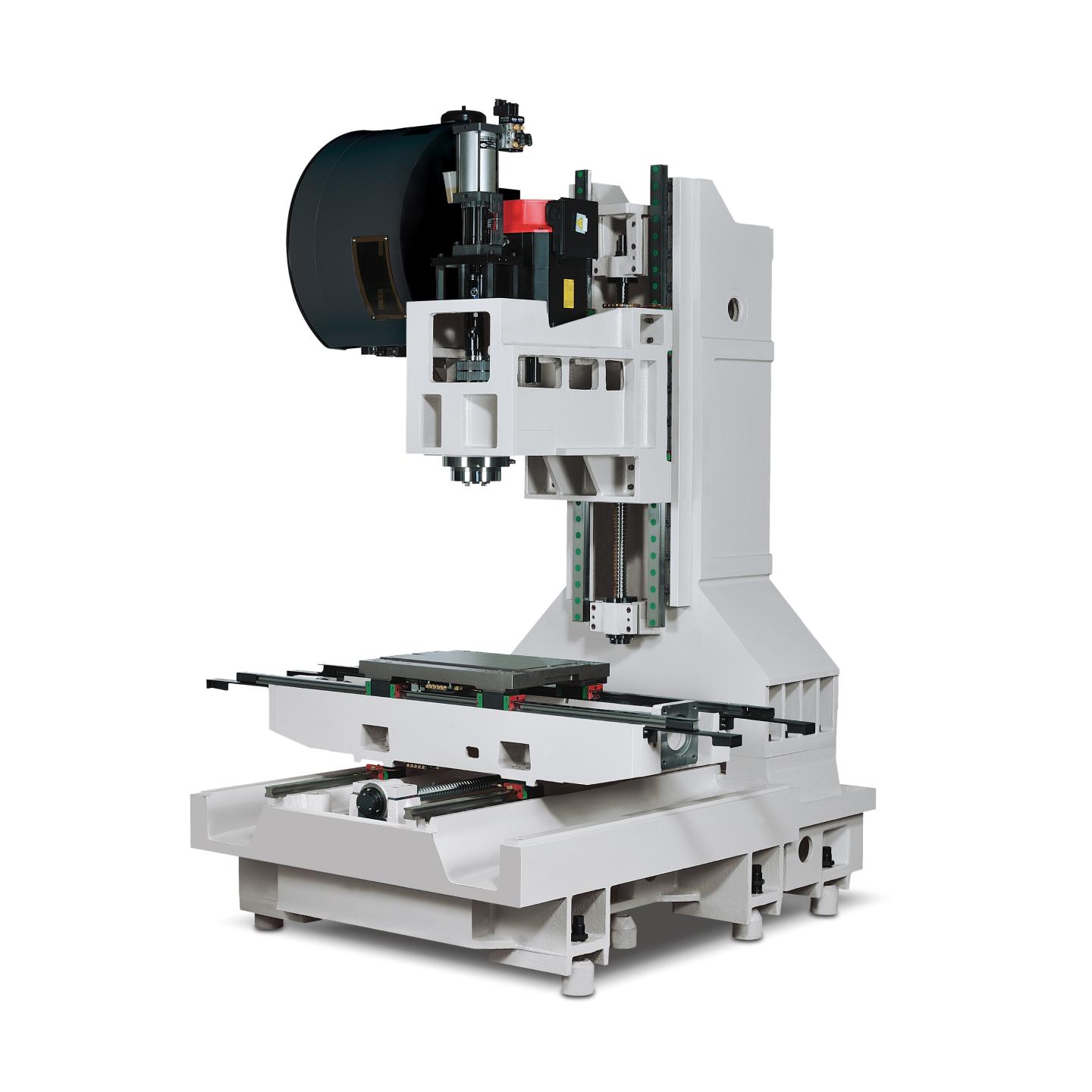

Roller Type Linear Guideways on X/Y/Z Axis

◉ X/Y/Z Rapid Traverse 30/30/24 m/min (Option 36/36/30 m/min)

◉ HQ-Container Ocean Packing (Lowest Shipping Fee)

◉ Direct Type Spindle Motor Cooling Device

MODEL

UNT

600

860

1160(1170)

Table

Table Size

mm

650 x 500

910 x 560

1160 x 600 (700)

Working Area

mm

610 x 500

860 x 600

1100 x 600 (1150x700)

T - Slot

mm

18 x 5 x 100

18 x 5 x 100

18 x 5 x 100 (125)

Max. Table Loading Capacity

kgs

300

800

1000

Travel

X/Y/Z - Axis Travel

mm

610 / 500 / 500

860 / 600 / 600

1100 / 600 / 600 (1150/700/650)

Spindle Nose To Table Surface

mm

90 ~ 590

120 ~ 720

120 ~ 720 (110~760)

Spindle

Spindle Taper


ISO 40

ISO 40 (ISO 50)

Spindle Speed

rpm

10000

(12000, 15000)

8000 (10000,12000,15000 )

(ISO50: 6000,8000,10000)

Transmission Method


Belt (Direct)

Belt (Direct, Gearbox)

Spindle Motor

kw

5.5/7.5 (7.5/11)

7.5/11 (11/15,15/18.5)

ATC

Magazine Capacity

tools

24 (30)

24 (30, 36)

(ISO50: 20,24)

24 (30, 36, 40)

(ISO50: 20,24)

Tool Selection Method


Random

Random

Max. Diameter / W / O (Adjacent)

mm

Ø75 / Ø150

Ø75 / Ø150

Max. Tool Weight / Length

kgs/mm

7 / 240

7 / 300 (ISO50: 15/350)

Tool Shank Specification


ISO-40

ISO-40 (ISO-50)

Tool Change Time

sec

T-T: 2.5; C-C: 4.8

T-T: 2.5 ; C-C:4.8

3 Axis Traverse

3 Axis Cutting Feedrate

mm/min

12000

12000

3 Axis Rapid Traverse

m/min

36/36/36

30/30/24 (36/36/30 , 48/48/36)

Drive Motors

Chip Auger Mmotor

hp

1/4

1/4

Chip Conveyor Motor

hp

1/4

1/4

Coolant Pump Motor

hp

3/4

3/4

Chip Flushing Pump Motor

hp

1/2 (3/4)

1/2 (3/4)

Coolant Tank

Coolant Tank Capacity

l

180

350

400

Coolant Flow

l/min

200

200

200

Others

Machine Dimensions (LxWxH)

mm

2600 x 3360 x 2800

2960 x 3570 x 2850

3660 x 3300 x 3080

Net Weight / Gross Weight

kgs

4300/4500

6000/6600

7300/7800

  • We reserve the right to modify the design and specification without notice in advance.
     Above specifications are for reference only. Correct specifications are based on actual machine.
  • Description in ( ) are optional accessories.
